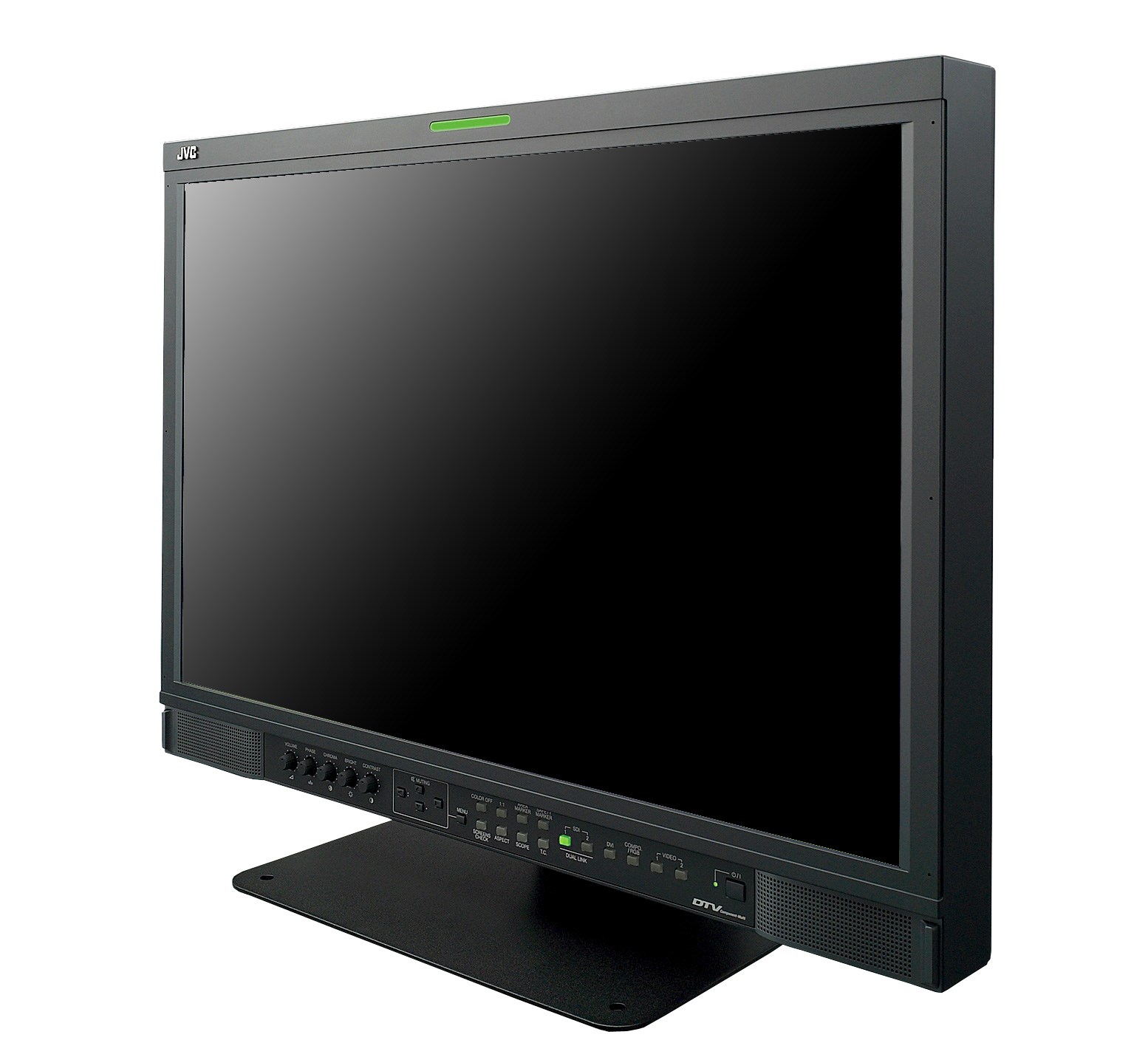

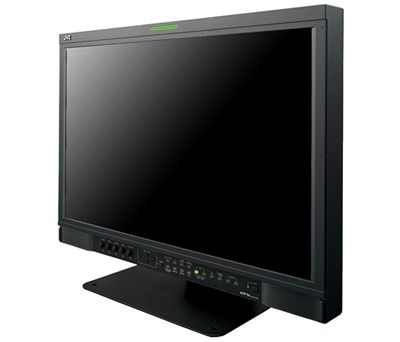

24” HD Multi-Format Dual Link LCD Monitor DT-V24G1 |
||
---|---|---|
Display Device | ||
Type | Multi format LCD monitor | |
Screen Size | 24" wide format | |
LCD Panel | Active matrix TFT | |
Effective Screen Size (WxHxDiagonal) | 518.4 x 324 mm | |
Aspect Ratio | 16:10 | |
Display Pixels | 1920 x 1200 | |
Response Time | 5 msec | |
Display Colour | 16.77 million | |
Viewing Angle | Horizontal | 178° |
Vertical | 178° | |
Brightness | 400 cd/m2 | |
Contrast Ratio | 1000:1 | |
General | ||
Computer Signal (Horizontal/Vertical Frequency) | 31.469-75.000 kHz / 48-65 Hz | |
Applicable Standard | 3G SDI (Ready) | SMPTE424M/SMPTE425M |
DUAL LINK HD SDI (Ready) | SMPTE372M | |
HD SDI | BTA S-004C, SMPTE292M | |
SD SDI | ITU-R BT.656: 525/625, SMPTE259M: 525 | |
EMBEDDED AUDIO | SMPTE299M, SMPTE272M | |
Audio Speaker | Internal speaker 1.0W + 1.0W | |
Operating Conditions | Operating Temperature | 5°C to 35°C |
Operating Humidity | 20% to 80% (non condensing) | |
Storage Temperature | -20°C to 60°C | |
Power Requirements | AC 120/220-240 V, 50/60 Hz | |
Rated Current | 1.15 A (AC 120V), 0.67 A (AC 220-240 V) | |
Dimensions | With stand (WxHxD) | 564 x 448.6 x 243 mm |
Without stand (WxHxD) | 564 x 408 x 99 mm | |
Weight | With stand | 11.6 kg |
Without stand | 8.7 kg | |
Accessories | AC power cord, power cord holder, screw x 2 (for power cord holder) | |
Input/Output Terminals | ||
Video IN/OUT Composite | 2 lines, BNC connector x 4, 1V (p-p), 75Ω *The input (IN) and output (OUT) terminals are bridgeconnected (auto termination) | |
Analog Component RGB Input | Input/output of analogue component signal/analogue RGB signal: 1 line, BNC connector x 6; G/Y: 1V(p-p), 75Ω (including sync signal) B/PB/B-Y, R/PR/R-Y: 0.7V(p-p), 75Ω *The input (IN) and output (OUT) terminals are bridgeconnected (auto termination) | |
EXT. SYNC (CS) | Input/output of composite sync signal: 1 line, BNC connector x 2, 0.3V(p-p) - 4V(p-p), 75Ω (tri-level sync, negative polarity sync (bi-level), and BB) (including no video signal) *The input (IN) and output (OUT) terminals are bridgeconnected (auto termination) | |
HD/SD SDI Input (Auto detection) | 2 lines, BNC connector x 2 (compatible with EMBEDDED AUDIO/DUAL LINK signals) | |
HD/SD SDI Output (Switched Out) | 1 line, BNC connector x 1 (compatible with EMBEDDED AUDIO signals) | |
DVI-D | DVI-D signal input (compatible with HDCP): DVI-D connector x 1 (compatible with DDC2B) | |
AUDIO Input | 2 lines, RCA connector x 4, 500 mV (rms), high impedance | |
AUDIO Output | 1 line, RCA connector x 2 (Monitor out), 500mV (rms) | |
External Control | MAKE/TRIGGER | RJ-45 x 1 (8-pin) |
RS-485 | RJ-45 x 2 (IN/OUT) (8-pin) | |
RS-232C | D-sub (9-pin) x 1 |
