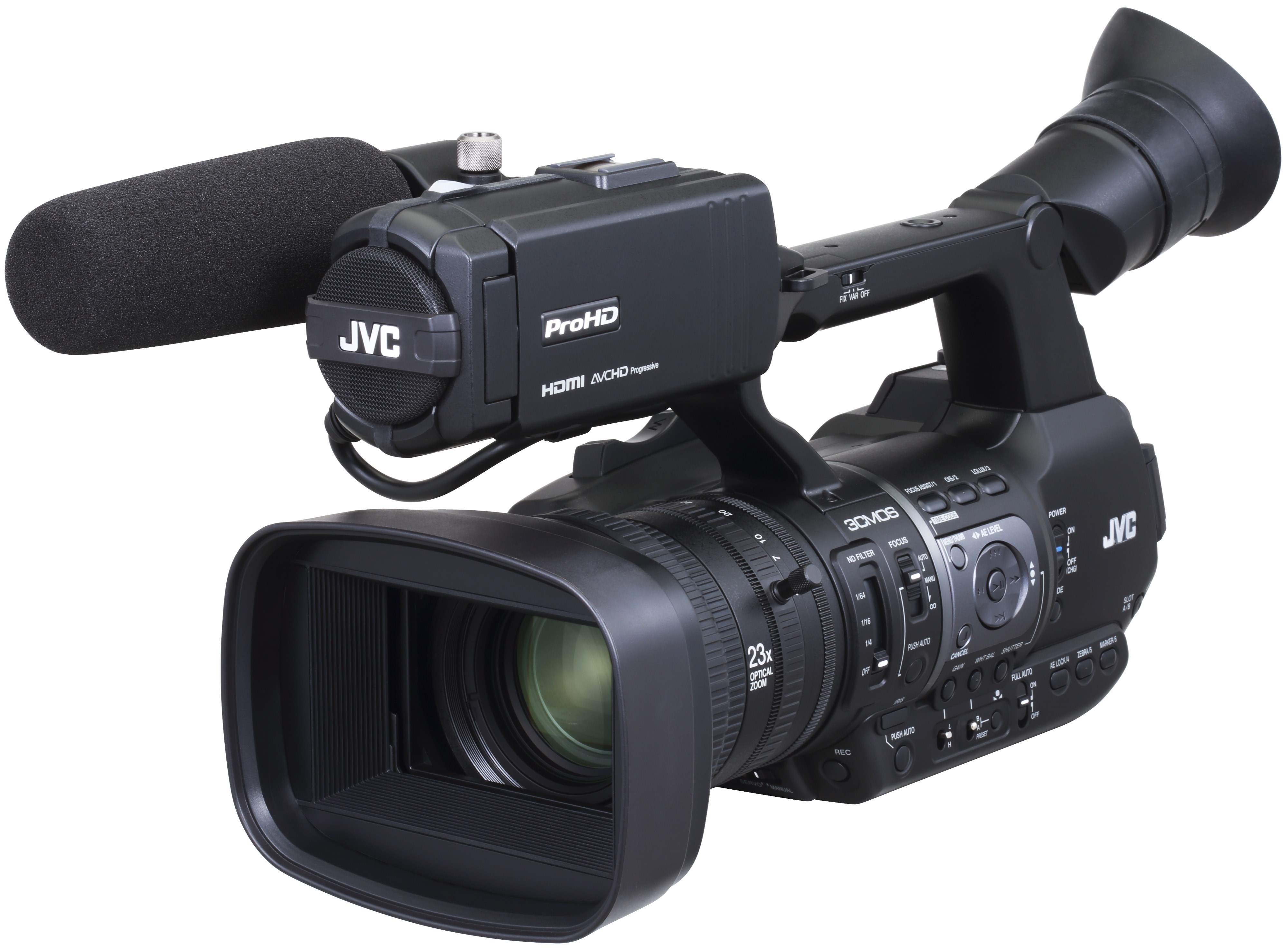

HD/SD Memory Card Camcorder
GY-HM660RE
Suggested retail price
$40,000.00
$40,000.00
- 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
- Dual Codec: Recording simultaneously HD + SD or HD + 480 x 270 (for Web delivery)
- SMPTE 2022 Forward Error Correction
| HD/SD Memory Card Camcorder (Wi-Fi) GY-HM660RE |
||
|---|---|---|
| General | Power requirement | DC 12V (AC adaptor), DC 7.4V (Battery) |
| Power consumption | Approx. 12W (with VF and REC mode, default setting) | |
| Dimensions (WxHxD) | 177.5 x 197 x 415.5 mm | |
| Weight | Approx. 2.5kg (including battery) | |
| Operating temperature | 0°C to 40°C (32°F to 104°F) | |
| Storage temperature | -20°C to 50°C (14°F to 122°F) | |
| Operating humidity | 30% to 80% | |
| Storage humidity | Under 85% | |
| Camera section | Image sensor | 1/3" CMOS 2.5M pixels |
| Synchronizing System | Internal synchronization | |
| Stabilizer | Optical image stabilizer | |
| Shutter speed | 1/6 to 1/10000, EEI | |
| Lens | F1.6 (wide) to F3.0 (Tele) f=4.1mm to 94.3mm (f=29 mm to 667mm (35mm equivalent)) | |
| Filter diameter | 72mm | |
| Gain | (-6, -3: Extended mode only), 0, 3, 6, 9, 12, 15, 18,21,24 dB, Lolux (30,36 dB), AGC | |
| ND filter | none, 1/4, 1/16, 1/64 | |
| LCD display | 3.5" 920K pixels, 16:9 | |
| Viewfinder | 0.45" 1.22M pixel, 16:9 | |
| Video Recording | Recording media | 2x SDHC/SDXC memory card (4K:UHS-1 U3, HD:50Mbps Class10, HD:35Mbps Class6, AVCHD/SD Class4) |
| Video codec | MPEG-4 AVC/H.264 (4K/HD/SD/Proxy), AVCHD(HD/SD) | |
| File format | MOV(H.264), MTS(AVCHD) | |
| HD (MPEG-2 Long GOP VBR) | NTSC setting: HQ mode:1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98p (Max 35Mbps) PAL setting: HQ mode: 1920 x 1080/50i, 25p, 1440 x 1080/50i, 1280 x 720/50i, 25p (Max 35Mbps) | |
| HD (MPEG-2 Long GOP CBR) | NTSC setting : SP mode: 1440 x 1080/59.94i, 1280 x 720/59.94p (18.3Mbps) PAL setting : SP mode: 1440 x 1080/50i, 1280 x 720/50p (18.3Mbps) | |
| HD (H.264) | NTSC setting: XHQ mode: 1920x1080/59.94p, 59.94i, 29.97p, 23.98p (Max 50Mbps), 1920x1080/59.94i, 29.97p, 23.98p (Max 35Mbps) PAL setting: XHQ mode: 1920 x 1080/50p, 50i, 25p (Max 50Mbps), 1920 x 1080/50i, 25p (Max 35Mbps) | |
| AVCHD | NTSC setting: Progressive mode (Max 28Mbps): 1920 x 1080/59.94p HQ mode (Max 24Mbps): 1920 x 1080/59.94i, SP mode (Max 18Mbps): 1920 x 1080/59.94i LP mode (9Mbps): 1440 x 1080/59.94i, EP mode (5Mbps): 1440 x 1080/59.94i PAL setting: Progressive mode (Max 28Mbps): 1920 x 1080/50p HQ mode (Max 24Mbps): 1920 x 1080/50i, SP mode (Max 18Mbps): 1920 x 1080/50i LP mode (9Mbps): 1440 x 1080/50i, EP mode (5Mbps): 1440 x 1080/50i | |
| SD (H.264) | NTSC setting: 720 x 480/59.94i (GY-HM660U ) PAL setting: 720 x 576/50i (GY-HM660E / GY-HM660EC) | |
| Proxy (H.264) | NTSC setting: HQ mode(3Mbps): 960 x 540/29.97p, 23.98p, LP mode(1.2Mbps): 480 x 270/29.97p, 23.98p PAL setting: HQ mode(3Mbps): 960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p | |
| Audio Recording | LPCM 2ch, 48kHz/16-bit (MOV/MP4), Dolby Digital, 2ch (AVCHD), μLaw 2ch (Proxy) | |
| Interface | Video output | AV output: φ3.5mm mini jack x1 SDI output: BNC x1 HDMI output x1 |
| Audio inputs | XLR x2 (MIC, +48V/LINE), φ3.5mm mini jack x1 | |
| Audio outputs | AV output (φ3.5mm mini jack x1) | |
| USB | HOST x1 (Network Connection), DEVICEx1 (Mass storage) Supported devices: Verizon, AT&T 4G LTE modems, Wi-Fi and LAN adapters | |
| Headphone | φ3.5mm mini jack x1 | |
| Time code input/output | RCA x 1 | |
| Remote | φ2.5mm mini jack x1 | |
| Accessories | Handle unit, Battery (SSL-JVC50) x1, AC Adapter x1 | |
