• 1/2.8-inch CMOS sensor (2.2 million pixels)
• Powerful 30x Optical zoom lens
• High Sensitivity mode (down to 0.02 lux)
• Direct drive motor for smooth, quiet and accurate pan and tilt
• PoE+ equipped: LAN cable enables simultaneous streaming ,camera control and power supply
• Full HD 1080 / 50p , 60p High Quality Video
• Simultaneous 3G-SDI and HDMI and IP digital outputs
• USB host connection for WiFi or 4G LTE adapter
• Control from Remote Location with PC
• RTMP for Direct Streaming to Content Delivery Network
• micro SDHC/micro SDXC memory card recording (H.264 50Mbps) and File Upload Capability

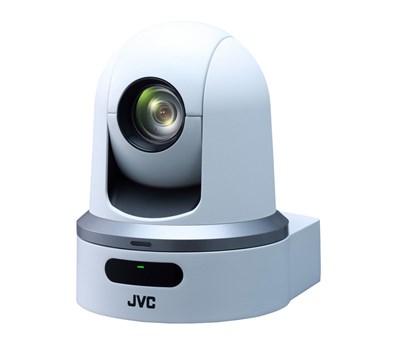

HD PTZ Remote Camera (White) KY-PZ100WEH |
||
---|---|---|
General | Power requirement | DC12V (AC adapter), DC42V to 57V (PoE+power supply) |
Power consumption | 1.6A (AC adapter), 0.4A (PoE+power supply) | |
Dimensions (WxHxD) | 154 (W) x 200.7 (H) x 191 (D) mm | |
Weight | approx. 2.0 kg | |
Operating temperature | 0°C ~ 40°C (32°F ~ 104°F) | |
Storage temperature | -20°C ~ 50°C (14°F ~ 122°F) | |
Operating humidity | 30% to 80% | |
Storage humidity | Under 85% | |
Finish | KY-PZ100B: Black / KY-PZ100W: White | |

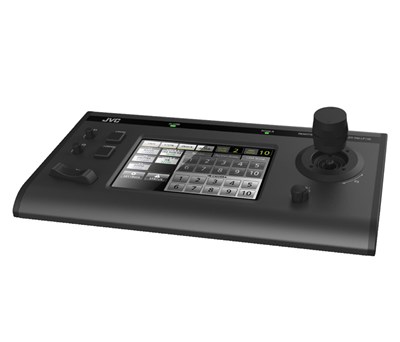

Supported Remote Controller | RM-LP100 | |
Camera section | Image sensor | 1/2.8" CMOS 2.13M pixcel |
Lens | F1.6(wide) to F4.7(Tele) f=4.3mm to129mm (30.5mm to 915mm (35mm equivalent)) 30x Optical Zoom | |
Digital Zoom | 12x | |
Horizontal FOV | 63.7° to 2.3° | |
Shutter speed | 1/8 to 1/10000 (U model), 1/6 to 1/10000 (E model) | |
Gain | 0, 3, 6, 9, 12, 15, 18, 21, 24, 30, 36, 42, 48 dB | |
Minimum Illumination | High sensitive mode OFF: 0.2 lx High sensitive mode ON: 0.02 lx; Night mode ON: 0.003 lx (B/W) | |
White Balance | FAW, AWB, 3200K, 5600K, MANUAL | |
S/N Ratio | 50dB | |
Pan Angle | ±175° | |
Pan Speed | Max 480°/s (AC Adapter) Max 400°/s (PoE+Power supply) | |
Tilt Angle | -30° to +90° | |
Tile Speed | Max 300°/s (AC Adapter) Max 200°/s (PoE+ Power supply) | |
Preset Position | 100 points | |
Interface | HD Video Output | SDI output (3G support: BNC x1), HDMI output x1 |
Audio Input | 3.5mm mini jack x 1 (MIC: Balanced Mono/Imbalanced STEREO with Power) (Line : Balanced Mono/Imbalanced STEREO) | |
LAN Terminal | RJ-45 x 1, PoE+: 42V to 57V Ethernet: 100BASE-TX, 1000BASE-T , RS-422 , RS-232C , USB | |
Streaming | Live Streaming Protocol | MPEG-2-TS/UDP, MPEG2-TS/RTP (SMPTE 2022-1), RTSP/RTP, Zixi, RTMP |
Video | MPEG-4/AVC H.264 1920x1080 (59.94p, 50p, 29.97p, 25p, 59.94i, 50i) 1280x720 (59.94p, 50p, 29.97p, 25p) 640x360 (29.97p, 25p) | |
Video/Audio Recording | Recording media | microSDHC/microSDXC memory card (Class 6/10) |
Number of Slot | 1 slot | |
Video Recording | Video codec: MPEG-4 AVC/H.264; File format: Quick Time HD (H.264) NTSC setting: 1920 x 1080/59.94p, 59.94i, 29.97p (50Mbps) 1920x1080/59.94i, 29.97p (35Mbps), 1280x720/59.94p (35Mbps) 1920x1080/59.94p (28Mbps) 1920x1080/59.94i, 29.97p (18Mbps), 1280x720/59.94p, 29.97p (18Mbps) 1920x1080/59.94i (5Mbps), 1280x720/29.97p (5Mbps) PAL setting: 1920x1080/50p, 50i, 25p (50Mbps) 1920x1080/50i, 25p (35Mbps), 1280x720/50p (35Mbps) 1920x1080/50p (28Mbps) 1920x1080/50i, 25p (18Mbps), 1280x720/50p, 25p (18Mbps) 1920x1080/50i (5Mbps), 1280x720/25p (5Mbps) | |
Audio recording | LPCM 2ch, 48kHz/16-bit (MOV), μ-low 2ch (5Mbps) | |
Accessories | Accessories provided | Direct ceiling mount bracket, Screws (M3), Screws (M2.6),Wireless remote control, AC adapter, Fall prevention wire, Template, Instruction manual |
