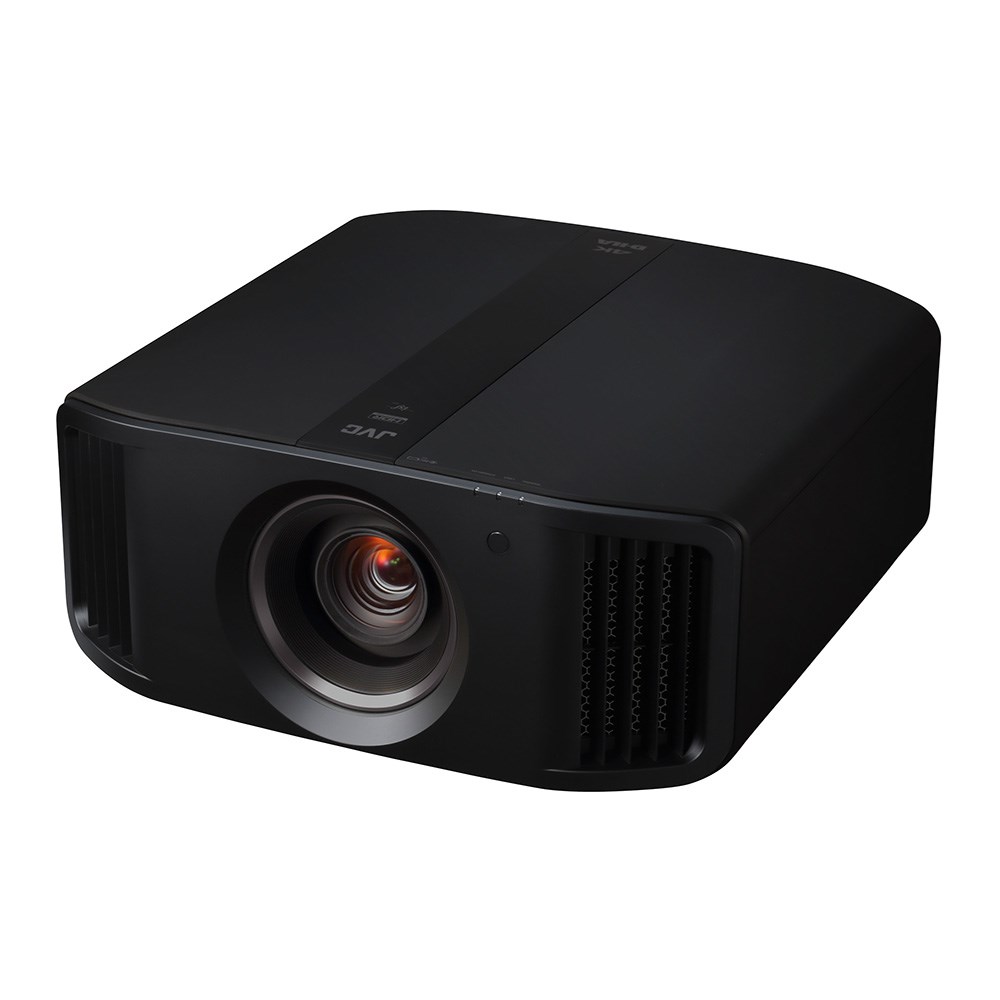

8K e-shiftX D-ILA Laser Projector
DLA-NZ800B
Suggested retail price
$138,000.00
$138,000.00
- 3rd Gen. True 4K D-ILA device
- 100,000:1 Native Contrast Ratio
- JVC’s proprietary 8K/e-shiftX 2nd Gen UHD images technology
- BLU-Escent laser light source technology
- High luminance of 2,700lm for powerful image expression
- 48Gbps 8K60p/4K120p inputs
- FILMMAKER Mode developed by UHD Alliance
- high-speed LSI video processor
- 8K 65mm diameter all-glass lens
- Ultra-High Contrast Optics
- 100% of the wide DCI-P3 color gamut
- Dual 48Gbps HDMI 2.1 inputs with HDCP 2.3
- Support HDR10+ dynamic metadata
- Frame Adapt HDR and Theater Optimizer perform dynamic tone mapping
- Made in Japan
| 8K e-shiftX D-ILA Laser Projector DLA-NZ800B |
||
|---|---|---|
| Device | 3 chip 0.69-inch True 4K D-ILA Device (3rd Gen.) | |
| Resolution | 8,192 x 4,320 (8K/e-shiftX) | |
| Lens | All-glass 65mm high-resolution lens 2x motorised zoom & focus | |
| Lens shift | ±80% Vertical / ±34% Horizontal (motorised) | |
| Projection size | 60 - 200 inches | |
| Light source lamp | BLU-Escent Diode | |
| Brightness | 2,700lm | |
| Contrast ratio | Native: 100,000:1 Dynamic: ∞：1 | |
| Terminals | HDMI x 2, RS-232C x 1, LAN x 1, Trigger x 1, 3D sync x 1, USB x1 | |
| Video input signal | 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24 | |
| PC input signal | Digital | HDMI: VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+/ WUXGA/ WQHD |
| Noise level | 24dB (in Low mode) | |
| Power requirement | AC 100V-240V, 50/60 Hz | |
| Power consumption | 440W | |
| Dimensions (W x H x D) | 500 x 234 x 528mm | |
| Weight | 23.1kg | |
