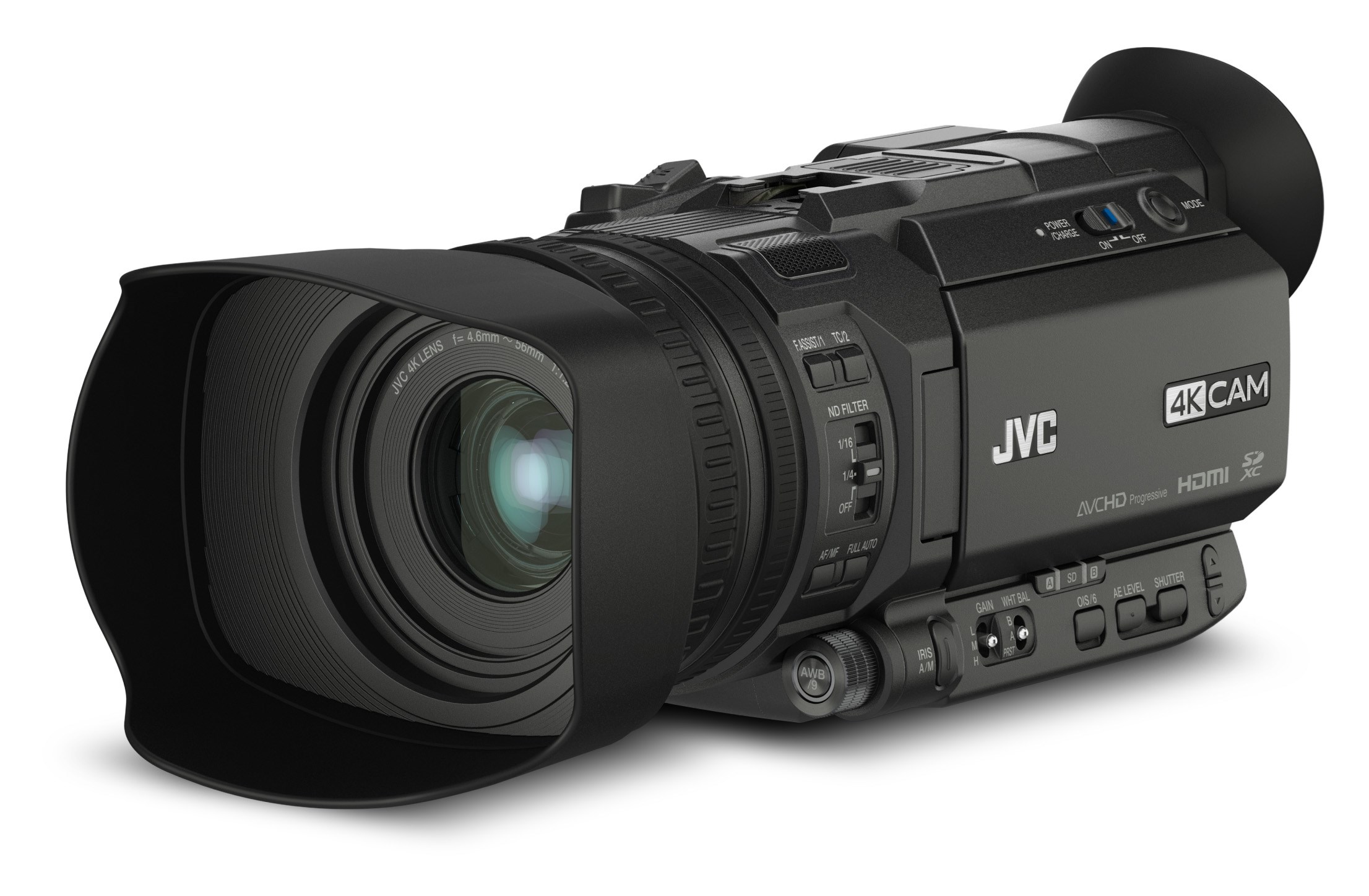

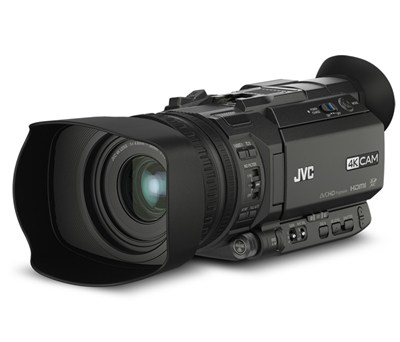

4K compact handheld camcorder
GY-HM170
Suggested retail price
$20,000.00
$20,000.00
- Single 1/2.3-inch CMOS image sensor w/12.4M pixels
- High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.6-355mm)
- 4:2:2 Full HD (24-60p) recording at 50Mbps
| 4K Compact Handheld Camcorder GY-HM170 |
||
|---|---|---|
| General | Power requirement | DC 12V (AC adaptor), DC 7.2V (Battery) |
| Power consumption | Approx. 7.6W（with VF in 4K REC mode, default setting） | |
| Dimensions (WxHxD) | 149 x 112 x 307 mm | |
| Weight | Approx. 1.2kg (including battery) | |
| Operating temperature | 0°C to 40°C | |
| Storage temperature | -20°C to 50°C | |
| Operating humidity | 30% to 80% | |
| Storage humidity | Under 85% | |
| Camera section | Image sensor | 1/2.3" Back Side Illuminated CMOS, total 12.4M pixels |
| Synchronizing System | Internal synchronization | |
| Stabilizer | Optical image stabilizer | |
| Shutter speed | 1/6 to 1/10000 | |
| Lens | 35mm equivalent: 29.6mm to 355mm | |
| Filter diameter | 62mm | |
| Gain | 0, 3, 6, 9, 12, 15, 18, 21, 24 dB, Lolux (30,36 dB), AGC | |
| ND filter | none, 1/4, 1/16 | |
| LCD display | 3.5" 920K pixels, 16:9 | |
| Viewfinder | 0.24" 1.56M pixel, 16:9 | |
| Video Recording | Recording media | 2x SDHC/SDXC memory card (4K:UHS-1 U3, HD:50Mbps Class10, HD:35Mbps Class6, AVCHD/SD Class4) |
| Video codec | MPEG-4 AVC/H.264 (4K/HD/SD/Proxy), AVCHD (HD/SD) | |
| File format | MOV (H.264), MTS (AVCHD) | |
| 4K (H.264) | NTSC setting: 3840 x 2160/29.97p, 23.98p (150Mbps) PAL setting: 3840 x 2160/25p (150Mbps) | |
| HD (H.264) | NTSC setting: YUV422 mode: 1920x1080/59.94p, 59.94i, 29.97p, 23.98p(50Mbps); XHQ mode: 1920x1080/59.94p, 59.94i, 29.97p, 23.98p(50Mbps), 1920x1080/59.94i, 29.97p, 23.98p(35Mbps), 1280x720/59.94p(35Mbps) PAL setting: YUV422 mode: 1920x1080/50p,50i,25p(50Mbps); XHQ mode: 1920x1080/50p, 50i, 25p(50Mbps), 1920x1080/50i, 25p(35Mbps), 1280x720/50p(35Mbps) | |
| AVCHD | NTSC setting: Progressive mode(Max 28Mbps): 1920x1080/59.94p HQ mode(24Mbps): 1920x1080/59.94i, SP mode(17Mbps): 1920x1080/59.94i; LP mode(9Mbps): 1440x1080/59.94i(Web mode), EP mode(5Mbps): 1440x1080/59.94i(Web mode) PAL setting: Progressive mode(Max 28Mbps): 1920 x 1080/50p HQ mode(24Mbps): 1920x1080/50i, SP mode(17Mbps): 1920x1080/50i LP mode(9Mbps): 1440x1080/50i(Web mode), EP mode(5Mbps): 1440x1080/50i(Web mode) | |
| SD (MOV/AVCHD) | NTSC setting: 720 x 480/59.94i(8Mbps) PAL setting: 720 x 576/50i(8Mbps) | |
| Proxy (H.264) | NTSC setting: HQ mode(3Mbps): 960 x 540/29.97p, 23.98p, LP mode(1.2Mbps): 480 x 270/29.97p, 23.98p PAL setting: HQ mode(3Mbps): 960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p | |
| Audio Recording | LPCM 2ch, 48kHz/16-bit(4k/HD/SD MOV), AC3 2ch(AVCHD), μlaw 2ch(Proxy) | |
| Interface | Video output | AV output: φ3.5mm mini jack x1, HDMI output x1 |
| Audio inputs | XLR x2 (MIC, +48V/LINE), φ3.5mm mini jack x1 | |
| Audio outputs | AV output (φ3.5mm mini jack x1) | |
| USB | DEVICEx1 (Mass storage) | |
| Headphone | φ3.5mm mini jack x1 | |
| Remote | φ2.5mm mini jack x1 | |
| Accessories | Battery (BN-VF823) x1, AC Adapter x1 | |
