4K Memory Card Camera Recorder


Suggested retail price

. Single 1/2.3-inch CMOS image sensor w/12.4M pixels
. High quality integrated 12x optical zoom lens (35mm equivalent: 29.6-355mm)
. 4K/Ultra HD (23.98p-29.97p) recording at 150Mbps and Live Output

4K Memory Card Camera Recorder
General Power requirement DC 12V (AC adaptor), DC 7.2V (battery)
Power consumption Approx. 8.0W (with VF in 4K REC mode, default setting)
Dimensions (WxHxD) 149 x 191 x 307 mm
Weight 1.1kg (including battery)
Operating temperature 0˚C to 40˚C
Storage temperature -20˚C to 50˚C
Operating humidity 30% to 80%
Storage humidity Under 85%
Camera section Image sensor 1/2.3-inch back-side illuminated CMOS, total 12.4M pixels
Synchronizing System Internal synchronization
Stabilizer Optical image stabilizer
Shutter speed 1/6 — 1/10000
Lens 35mm equivalent: 29.6mm to 355mm
Filter diameter 62mm
Gain 0, 3, 6, 9, 12, 15, 18, 21, 24 dB, Lolux (30, 36 dB), AGC
ND filter None, 1/4, 1/16
LCD display 3.5-inch 920 k pixels, 16:9
Viewfinder 0.24-inch 1.56 M pixel, 16:9
Video Recording Recording media 2x SDHC/SDXC memory card (4K (150Mbps): UHS-1 U3 4K (70Mbps), HD: 50Mbps Class 10, HD: 35Mbps Class 6, AVCHD/SD Class 4), High-Speed: UHS-1 U3
Video codec MPEG-4 AVC/H.264 (4K/HD/SD/Proxy), AVCHD (HD/SD)
File format MOV (H.264), MTS (AVCHD)
Audio Recording LPCM 2ch, 48kHz/16-bit (4k/HD/SD MOV), AC3 2ch (AVCHD), μ-law 2ch (Proxy)
Interface Video output SDI output (BNC x 1), HDMI output x 1, AV output (3.5mm mini jack x 1)
Audio inputs XLR x 2 (MIC, +48V/LINE), 3.5mm mini jack x 1
Audio outputs AV output (3.5mm mini jack x 1)
USB DEVICE x 1 (mass storage)
Headphone 3.5mm mini jack x 1
Remote 2.5mm mini jack x 1
Accessories Handle unit, AC adapter x 1

Related Downloads

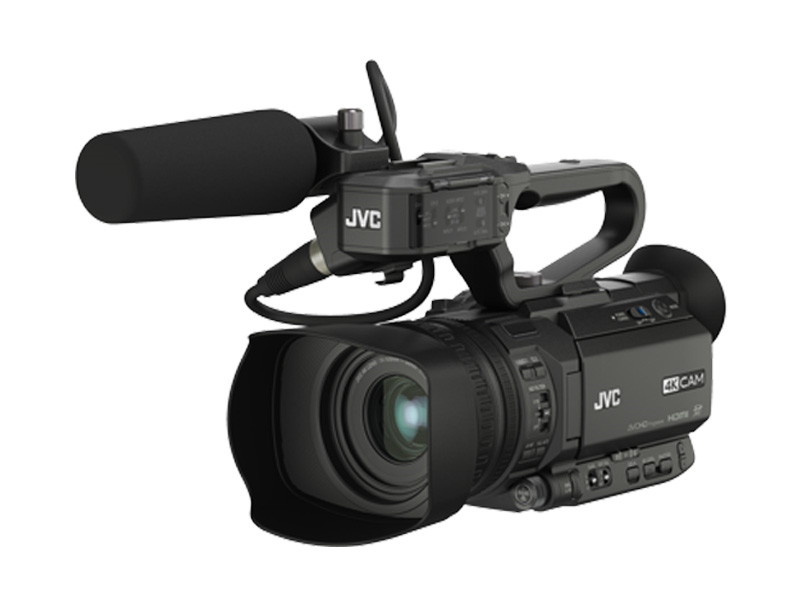

Product shot
