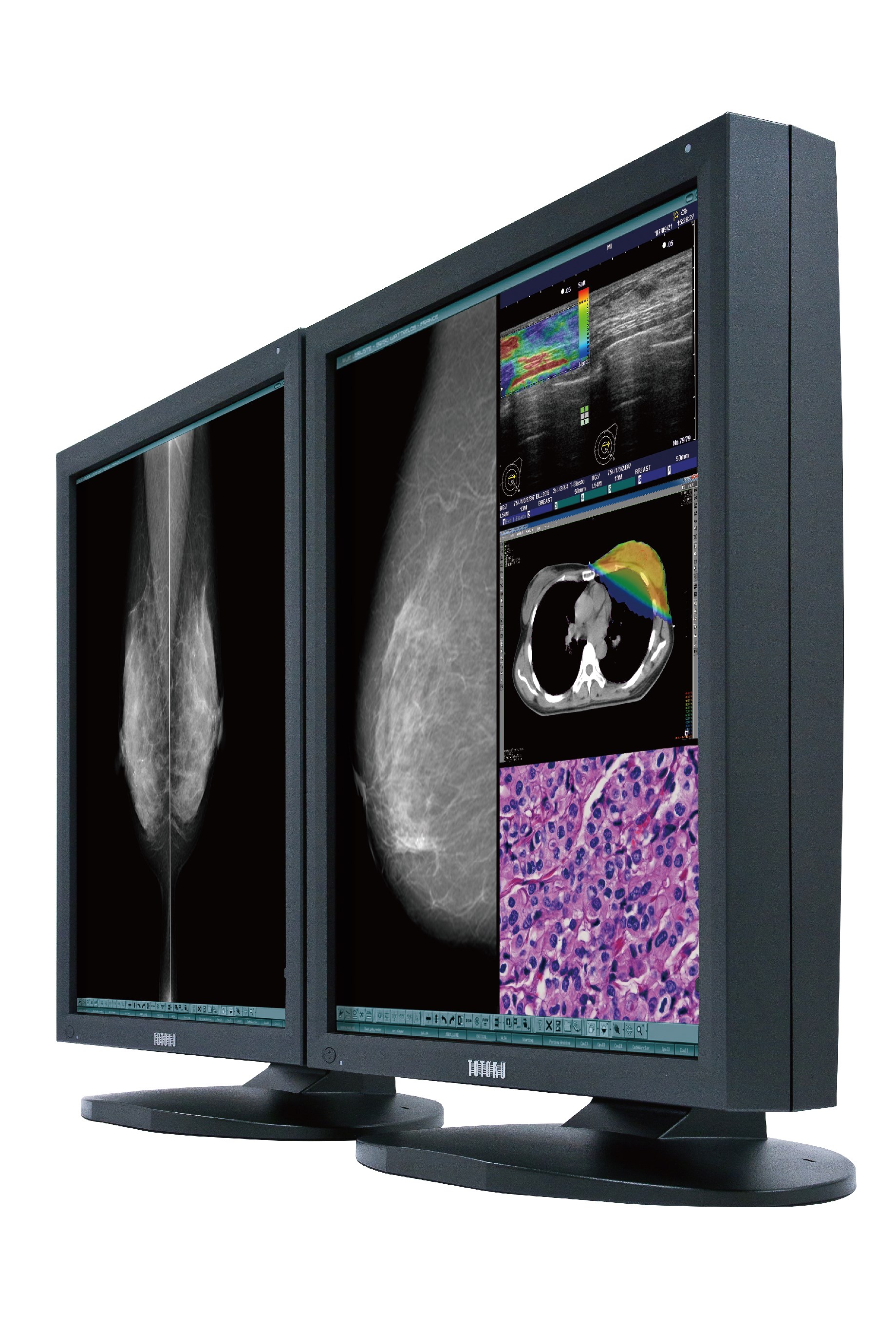

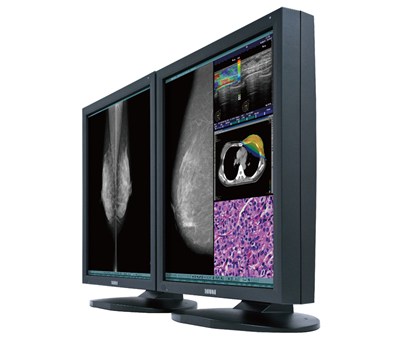

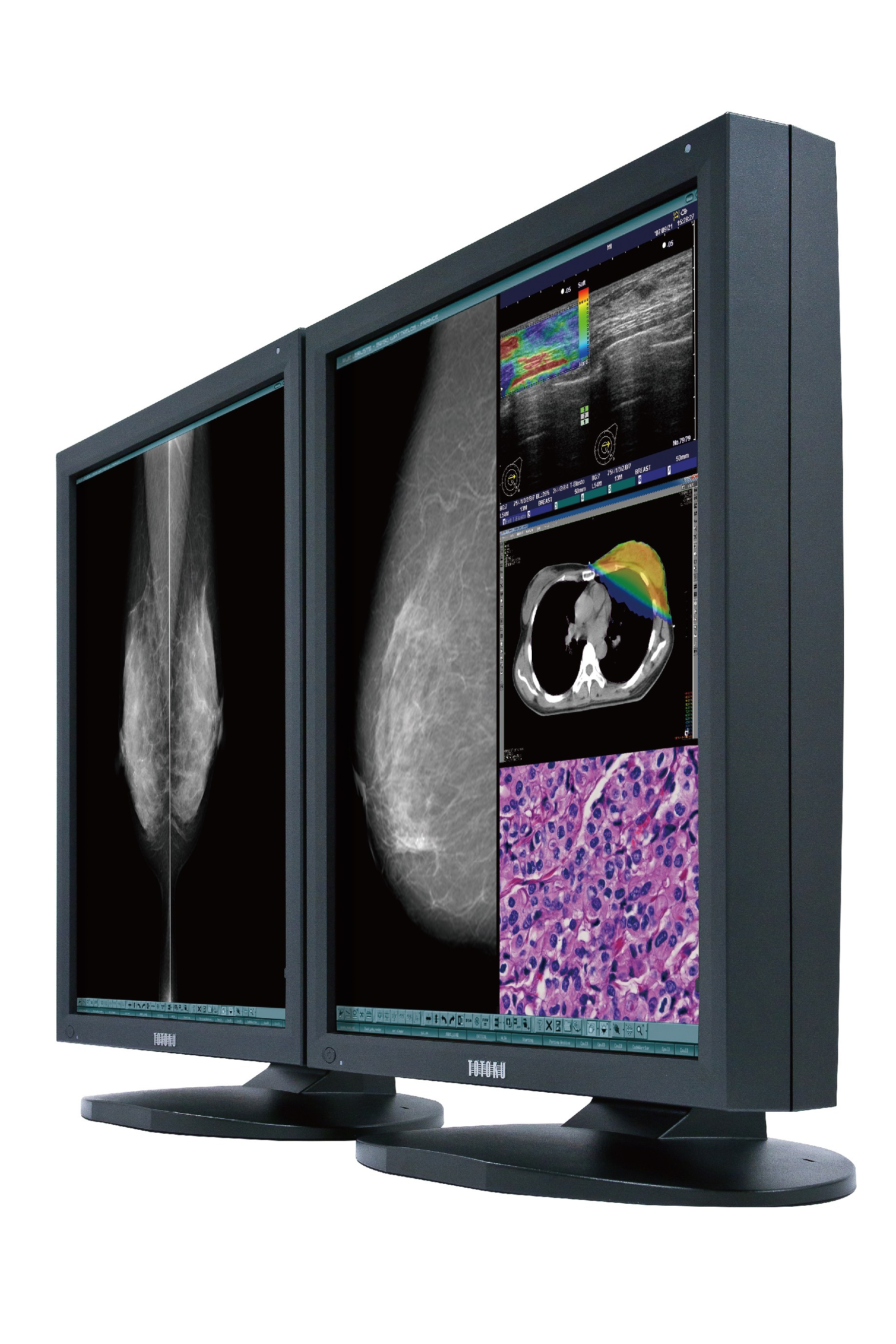

5 Megapixel 21.3" Color Display
CCL550i2/F
Suggested retail price
$78,000.00
$78,000.00
- 5 Megapixel 21.3" TFT color active matrix IPS technology
- 16 Bit LUT
- Luminance Stabilizing System λ-Sentinel
- Uniformity Equalizer

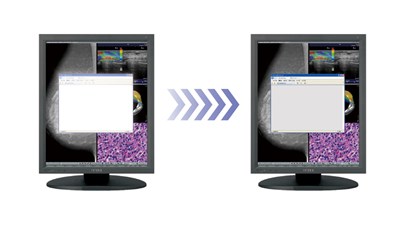

- Dynamic Gamma and Auto Text Mode

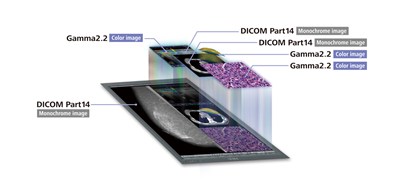

- Dicom Conformance Check
| 5 Megapixel 21.3" Color Display CCL550i2 |
||
|---|---|---|
| Technology | 21.3-inch, TFT color active matrix IPS technology | |
| Display Area | 338mm x 422mm | |
| Pixel Pitch | 0.165mm x 0.165mm | |
| Contrast Ratio | 1300:1 (typ) | |
| Maximum Luminance | 1000 cd/m2 (typ) 500 cd/m2 / 410cd/m2 (calibrated) | |
| Viewing Angle | 176° Vertical and Horizontal | |
| Native Resolution | 2048 x 2560 | |
| Display Colors | 16.77 million colors from a palette of 280 trillion colors 1.06 billion colors with Display Port and 10-bit viewer | |
| Input Signal | DVI-D (DVI 1.0 compliant), Display Port (Display Port 1.1a compliant) | |
| Plug and Play | DDC2B compliant | |
| Input Power Supply | 100V-240V, 50/60Hz | |
| Maximum Power Consumption | 95W (typ) | |
| Calibration Control | Luminance, Gamma, Color temperature Storing 3 sets of LUT | |
| OSD Information Display | Model name, Serial No., Total operating time, Calibration settings (Operating time from last calibration, Luminance, Gamma), Current luminance and ambient light, DICOM conformance | |
| USB Hub | USB Rev. 2.0 compliant, Self-powered USB upstream connector (x1), USB downstream connector (x2) | |
| Others Features | Luminance / color uniformity correction, Hardware pivot, LED indicator, Multiple LUT, Self DICOM check function | |
| Dimensions (WxHxD) | Landscape | 475mm x 483/544mm x 220mm |
| Portrait | 390mm x 525/587mm x 220mm | |
| Net Weight | approx. 12kg | |
| Mount | Vesa mounting 100mm x 100mm | |
| Accessories | Power cord, DVI cable, Display Port cable, USB cable, Users manual | |
