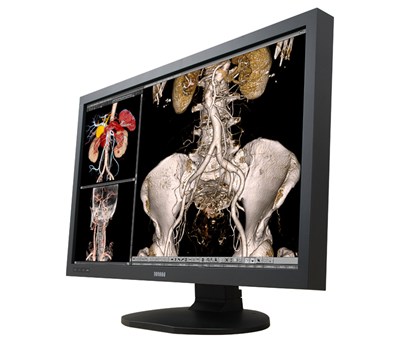

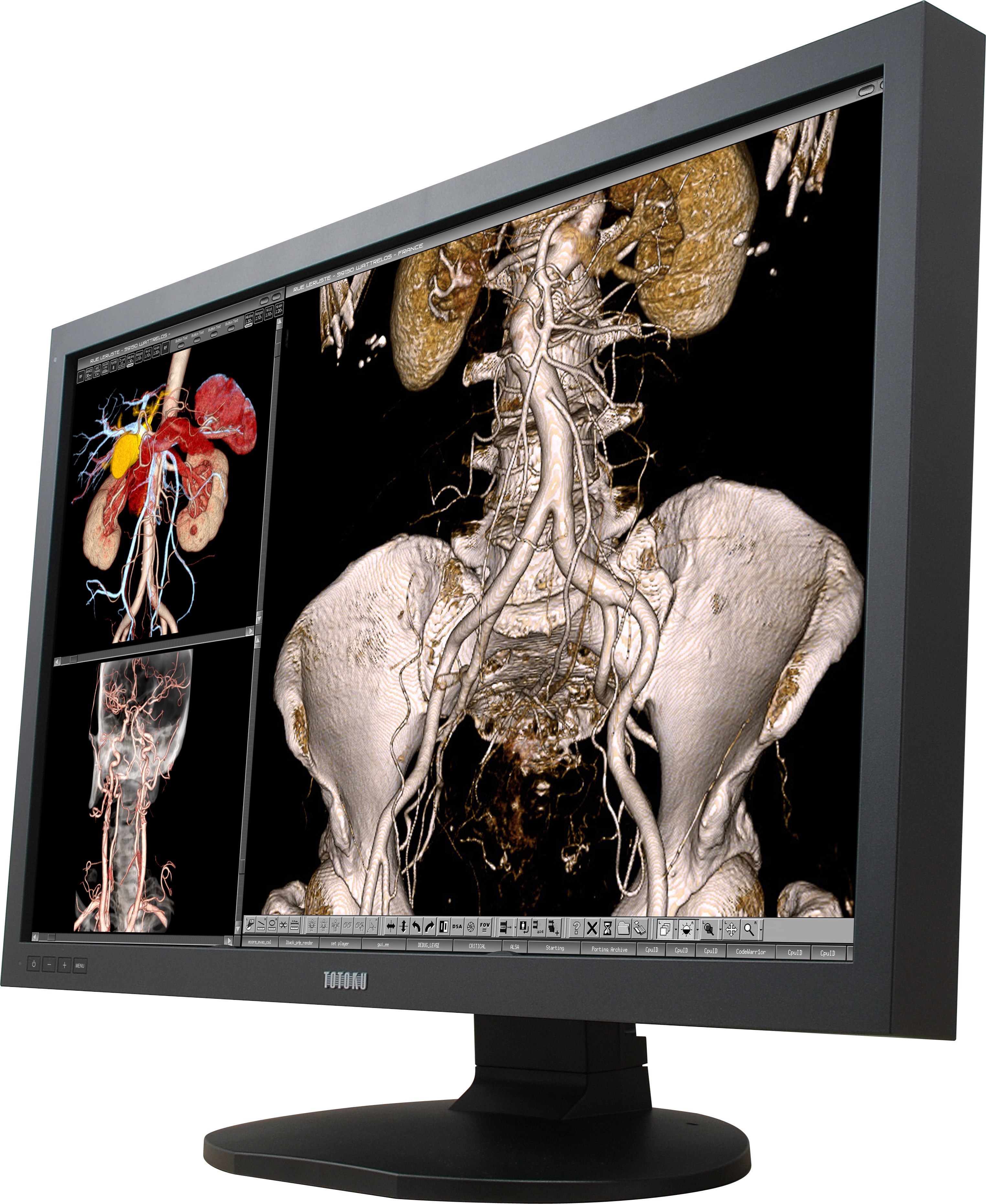

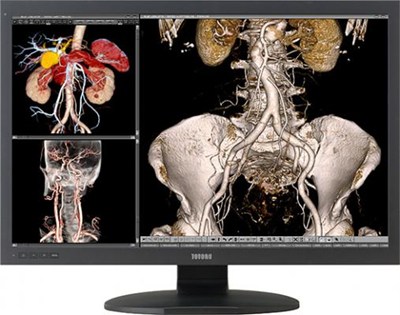

CCL650i2/AR
6 Megapixel 30" Color Display
Suggested retail price
$90,000.00
$90,000.00
- 6 Megapixel 30" TFT color active matrix IPS technology
- 16 Bit LUT
- Luminance Stabilizing System λ-Sentinel
- Uniformity Equalizer
- Dual link DVI and Display Port
- Dicom Conformance Check
| 6 Megapixel 30" Color Display CCL650i2 |
|
|---|---|
| Technology | 30-inch, TFT color active matrix IPS technology |
| Display Area | 645.5mm x 403.05mm |
| Pixel Pitch | 0.197mm x 0.197mm |
| Contrast Ratio | 1000:1 (typ) |
| Maximum Luminance | 800 cd/m2 (typ) |
| Viewing Angle | 170° Vertical and Horizontal |
| Native Resolution | 3280 x 2048(at Fv=30Hz), 1640 x2048(at Fv=60Hz) |
| Display Colors | 16.77 million colors from a palette of 68 billion colors 1.06 billion colors with Display Port and 10-bit viewer |
| Input Signal | DVI-D (DVI 1.0 compliant), Display Port (1.1a compliant) |
| Plug and Play | DDC2B compliant |
| Input Power Supply | 100V-240V, 50/60Hz |
| Maximum Power Consumption | 180W (typ) |
| Calibration Control | Luminance, Gamma, Color temperature capable of storing 3 sets of LUT (an optional calibration kit is required) |
| OSD Information Display | Model name, Serial No., Total operating time, Calibration settings (Operating time since from last calibration, Luminance, Gamma), Current luminance and ambient light, DICOM conformance |
| USB Hub | USB Rev. 2.0 compliant, Self-powered USB upstream connector (x1), USB downstream connector (x2) |
| Others Features | Luminance / color uniformity correction, LED indicator, Multiple LUT, Self DICOM check function |
| Dimensions (WxHxD) | 695.6mm x 512.2/573.6mm x 243.5mm |
| Net Weight | approx. 15.5kg |
| Mount | Vesa mounting 100mm x 200mm, 100mm x 100mm |
| Accessories | Power cord, DVI cable x 2, Display Port cable x 2, USB cable, Users manual |
