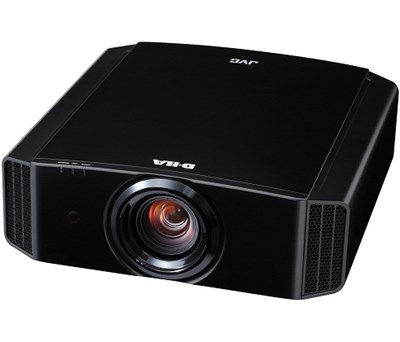

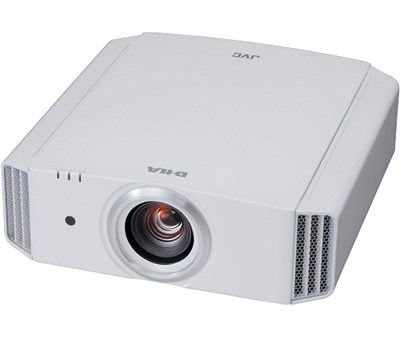

4K 3D D-ILA Projector
DLA-X5500
Suggested retail price
$38,800.00
$38,800.00
- 4K e-shift4 Technology (3840 x 2160)
- 1,800-lumen brightness
- 40,000:1 native contrast ratio
- 400,000:1 dynamic contrast ratio
- Support 4K60p 4:4:4 Broadcasting video signal
- Compatible with HDR contents
- Dual 18Gbps HDMI support HDCP 2.2
- Low latency mode for gaming
- Clear Motion Drive & Motion Enhance Technology
- 6-axis Color management system
- Screen Adjustment Modes (136 modes)
- 5 presets Lens Memory function
- 2x motorised zoom lens
- Compatible with Control4 SDDP
- Auto Calibration (used with software, PC & optical sensior)
Original 4K e-shift Technology continues to evolve
JVC’s e-shift technology shifts sub-frames by 0.5 pixels both vertically and horizontally to achieve 4 times the pixel density of the original content. The latest e-shift4 Technology is capable of inputting full-spec 4K video signals including 4K60P 4:4:4.
| 4K 3D D-ILA Projector DLA-X5500 |
||
|---|---|---|
| Device | 0.7inch Full HD D-ILA x 3 | |
| Resolution | 3,840 x 2,160 | |
| Lens | 2x motorised zoom & focus f=21.4mm - 42.8mm F=3.2 - 4 | |
| Lens shift | ±80% Vertical / ±34% Horizontal (motorised) | |
| Projection size | 60 - 200 inches | |
| Light source lamp | NSH 265W | |
| Brightness | 1,800lm | |
| Contrast ratio | Native:40,000:1 Dynamic: 400,000:1 | |

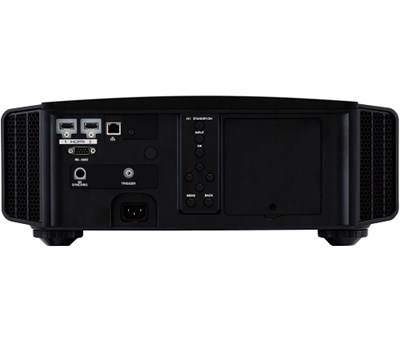

| Terminals | HDMI 2.0 x 2, RS-232C x 1, LAN x 1, Trigger x 1, 3D sync x 1 | |
| Video input signal | 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 60/50/24, 3840x2160p 60/50/24, 4096x2160p 60/50/24 |
|
| PC input signal | Digital | HDMI: VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+/ WUXGA |
| Noise level | 21dB (in Low mode) | |
| Power requirement | AC 100V-240V, 50/60 Hz | |
| Power consumption | 380W | |
| Dimensions (W x H x D) | 455 x 179 x 472mm | |
| Weight | 15.4kg | |
