4K 3D D-ILA Projector

DLA-X900R

Suggested retail price
$89,900.00
  • 4K resolution (3840 x 2160) achieved with e-shift 3 Technology
  • THX 3D Display Certification
  • Certified by ISF
  • 150,000:1 native contrast ratio
  • 1,500,000:1 dynamic contrast ratio
  • 1300-lumen brightness
  • Color management system with 7-axis Matrix
  • Professional-grade 2D-3D converter
  • Clear Motion Drive improves pictures with rapid movement
  • Three 0.7" Full HD D-ILA devices
  • Video input signal capability: 1080p 60/50p
  • Intelligent Lens Aperture
  • 2x motorised zoom lens for flexible installation
  • 10-mode Lens Memory function
  • Screen Adjustment Modes (255 modes)
  • Pixel Adjust function (1/16-pixel increment)
  • Connectors: HDMI x 2 (3D, Deep Color, CEC compatible), RS-232C x 1, LAN x 1, Trigger x 1)
  • Optional 3D Glasses (PK-AG3) and 3D Sync-emitter (PK-EM2) are required for viewing

Original 4K e-shift Technology continues to evolve


JVC’s e-shift technology shifts sub-frames by 0.5 pixels both vertically and horizontally to achieve 4 times the pixel density of the original content. The latest e-shift4 Technology is capable of inputting full-spec 4K video signals including 4K60P 4:4:4.

4K 3D D-ILA Projector
DLA-X900R
Device 0.7inch Full HD D-ILA x 3
Resolution 4K projection (3,840 x 2,160)pixels
Lens 2x motorised zoom & focus f=21.4mm - 42.8mm F=3.2 - 4
Lens shift ±80% Vertical / ±34% Horizontal (motorised)
Projection size 60 - 200 inches
Light source lamp NSH 230W
Brightness 1300lm
Contrast ratio Native:150000:1
Terminals Component x 1, HDMI x 2(3D, Deep Color, CEC compatible), RS-232C
x 1, LAN x 1, Trigger x 1, Remote x 1, 3D sync x 1
Video input signal Digital: 480i/p, 576i/p, 720p 60/50, 1080i 60/50, 1080p
60/50/24; Analog: 480i/p, 576i/p, 720p 60/50, 1080i 60/50
PC input signal Digital HDMI: VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ WSXGA+/ WUXGA
(D-Sub): VGA/ SVGA/ XGA/ WXGA/ WXGA+/ SXGA/ SXGA+/ WSXGA+/
1920x1080/ Mac 13", 16", 19"
Noise level 21dB (in Normal mode)
Power requirement AC 110V-240V, 50/60 Hz
Power consumption 360W (Stand-by: 0.4W)
Dimensions (W x H x D) 455 x 179 x 472mm
Weight 15kg

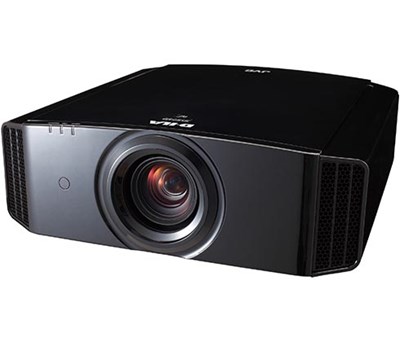

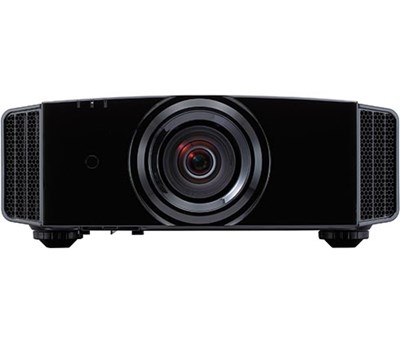

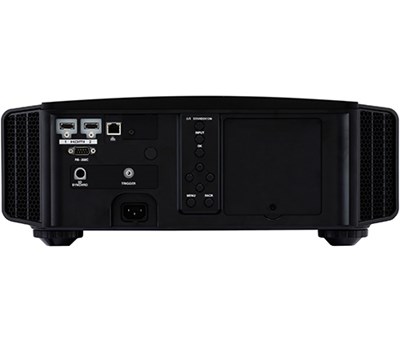

Product shot
