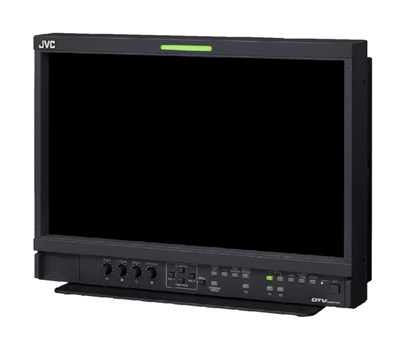

15" Multi-Format LCD Monitor


Suggested retail price
  • 15" Multi-Format LCD Monitor
  • The latest interfaces – HDMI and HD-SDI
  • HD resolution LCD panel with LED backlighting
  • 16-channel embedded audio level meter
  • IMD (in-monitor display) function
15" Multi-Format LCD Monitor
Display Device
Type Multi format LCD monitor
Screen Size 15" wide format
Effective Screen Size (WxHxDiagonal) 344 x 194 x 395 mm
Aspect Ratio 16:9
Display Pixels 1366 x 768 (HD)
Display Colour 16.7 million
Surface Treatment Non-gloss
Viewing Angle Horizontal 170°
Vertical 160°
Brightness 300 cd/m2
Contrast Ratio 500:1
Backlighting LED
Computer Signal (Horizontal/Vertical Frequency) 31.469-75.000 kHz / 49.990-75.062 Hz
Applicable Standard HD SDI BTA S-004C, SMPTE292M
SD SDI ITU-R BT.656: 525/625, SMPTE259M: 525
Audio Speaker Internal speaker 1.0W
Operating Conditions Operating Temperature 5°C to 35°C
Operating Humidity 20% to 80% (non condensing)
Power Requirements AC 120/220-240 V, 50/60 Hz
Rated Current 0.6 A (AC 120 V), 0.35 A (AC 220-240 V)
VESA Standard 100 x 100mm (M4 x 4mm screw)
Dimensions With stand (WxHxD) 373 x 270.1 x 181 mm
Without stand (WxHxD) 373 x 265 x 99 mm
Weight With stand 5.9 kg
Without stand 4.3 kg
Input/Output Terminals
Video IN/OUT Composite 1 line, BNC connector x 2, 1V (p-p), 75Ω
HDMI Input HDMI connector x 1
Analog Component RGB Input Mini D-Sub 15-pin x 1, Y: 1V (p-p), 75Ω (with sync); G, B/PB/B-Y, P/PR/R-Y: 0.7 V (p-p), 75Ω; HS, VS: 03V (p-p) to 5V (p-p)
HD/SD SDI Input (Auto detection) BNC connector x 2 (compatible with EMBEDDED AUDIO)
HD/SD SDI Output (Switched Out) BNC connector x 1 (compatible with EMBEDDED AUDIO signals)
AUDIO Input 1 lines, RCA x 2 (L/R), 500mV (RMS), High Impedance
AUDIO Output 1 line, RCA x 2 (L/R) Monitor Out, 500 mV (RMS)
External Control MAKE/TRIGGER RJ-45 x 1 (8-pin)
RS-485 RJ-45 x 2 (IN/OUT) (8-pin)
RS-232C D-sub (9-pin) x 1
