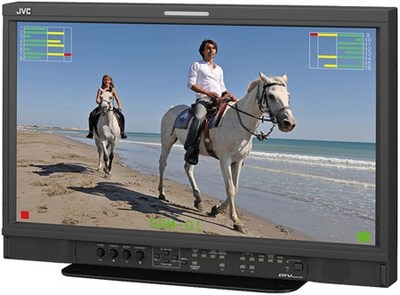

17” Multi-Format LCD Monitor


Suggested retail price
  • 17" Multi-Format LCD Monitor
  • The latest interfaces - HDMI and HD-SDI
  • Full HD resolution LCD panel with LED backlighting
  • 16-channel embedded audio level meter
  • Carrying handle and DC power supply
  • IMD (in-monitor display) function
  • Easy access front panel controls
17" Multi-Format LCD Monitor
Display Device
Type Multi format LCD monitor
Screen Size 17" wide format
Effective Screen Size (WxHxDiagonal) 382 x 215 x 438 mm
Aspect Ratio 16:9
Display Pixels 1920 x 1080 (Full HD)
Display Colour 16.7 million
Surface Treatment Gloss
Viewing Angle Horizontal 160° (typical)
Vertical Upward: 60°, Downward: 80° (typical)
Brightness 300 cd/m2
Contrast Ratio 600:1
Backlighting LED
Computer Signal (Horizontal/Vertical Frequency) 31.469-75.000 kHz / 49.990-75.062 Hz
Applicable Standard HD SDI BTA S-004C, SMPTE292M
SD SDI ITU-R BT.656: 525/625, SMPTE259M: 525
Audio Speaker Internal speaker 1.0W + 1.0W
Operating Conditions Operating Temperature 5°C to 35°C
Operating Humidity 20% to 80% (non condensing)
Power Requirements AC 120/220-240 V, 50/60 Hz; DC 12V-17V
Rated Current 0.5A (AC 120 V), 0.3A (AC 220-240V), 3.0A (DC12V-17V)
VESA Standard 100 x 100mm (M4 x 4mm screw)
Dimensions With stand (WxHxD) 430 x 314.1 x 181 mm
Without stand (WxHxD) 430 x 309 x 102 mm
Weight With stand 7.1 kg
Without stand 5.6 kg
Input/Output Terminals
Video IN/OUT Composite 1 line, BNC connector x 2, 1V (p-p), 75 Ω
HDMI Input HDMI connector x 1
Analog Component RGB Input Mini D-Sub 15-pin x 1, Y: 1V (p-p), 75Ω (with sync); G, B/PB/B-Y, P/PR/R-Y: 0.7 V (p-p), 75Ω; HS, VS: 03V (p-p) to 5V (p-p)
HD/SD SDI Input (Auto detection) BNC x 2 (compatible with EMBEDDED AUDIO signals)
HD/SD SDI Output (Switched Out) BNC x 1 (compatible with EMBEDDED AUDIO signals)
AUDIO Input 2 lines, RCA x 2 (L/R) stereo mini jack x 1, 500mV (RMS), High Impedance
AUDIO Output 1 line, RCA x 2 (L/R) Monitor Out, 500 mV (RMS)
External Control MAKE/TRIGGER RJ-45 x 1 (8-pin)
RS-485 RJ-45 x 2 (IN/OUT) (8-pin)
RS-232C D-sub (9-pin) x 1
