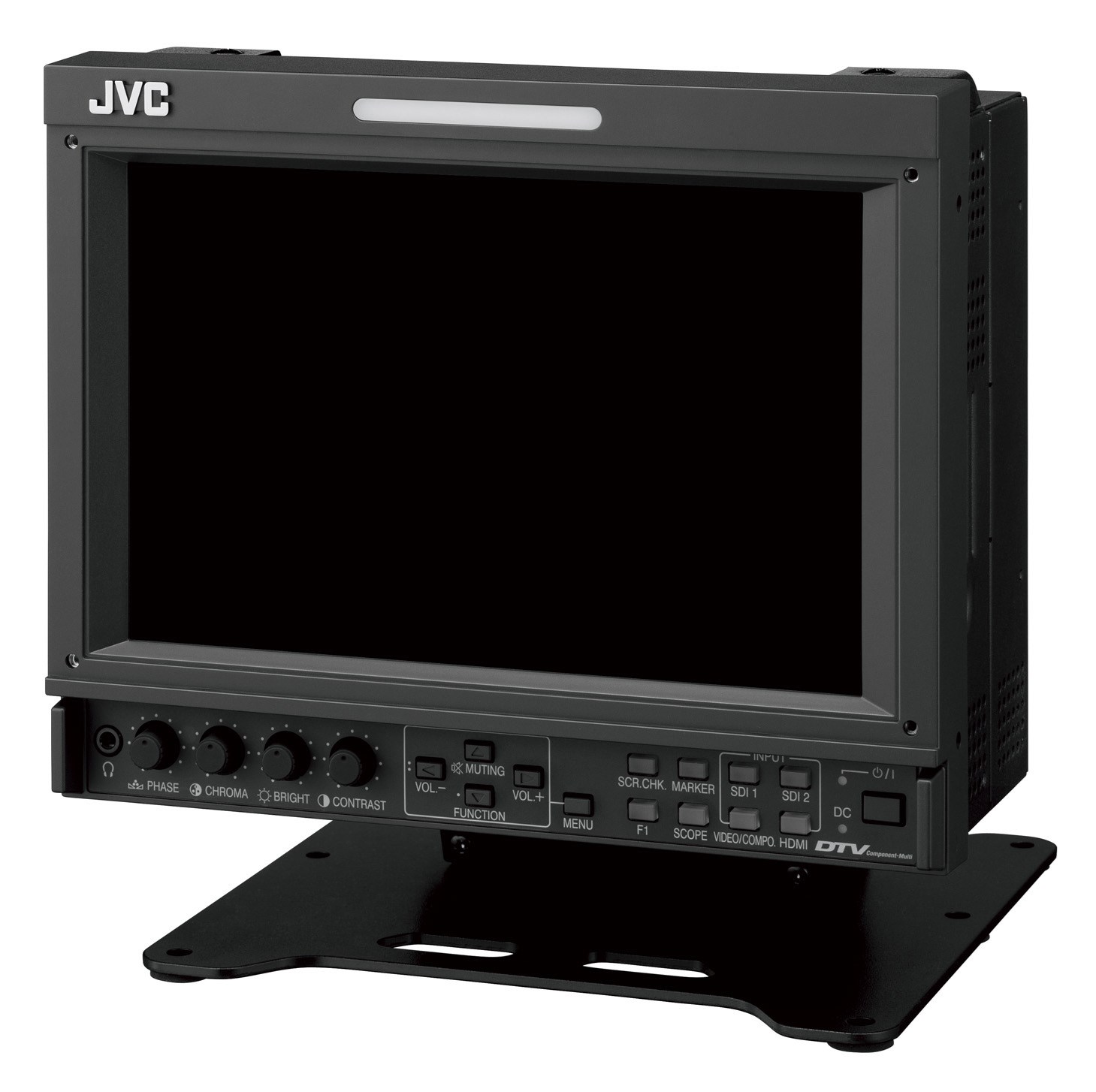

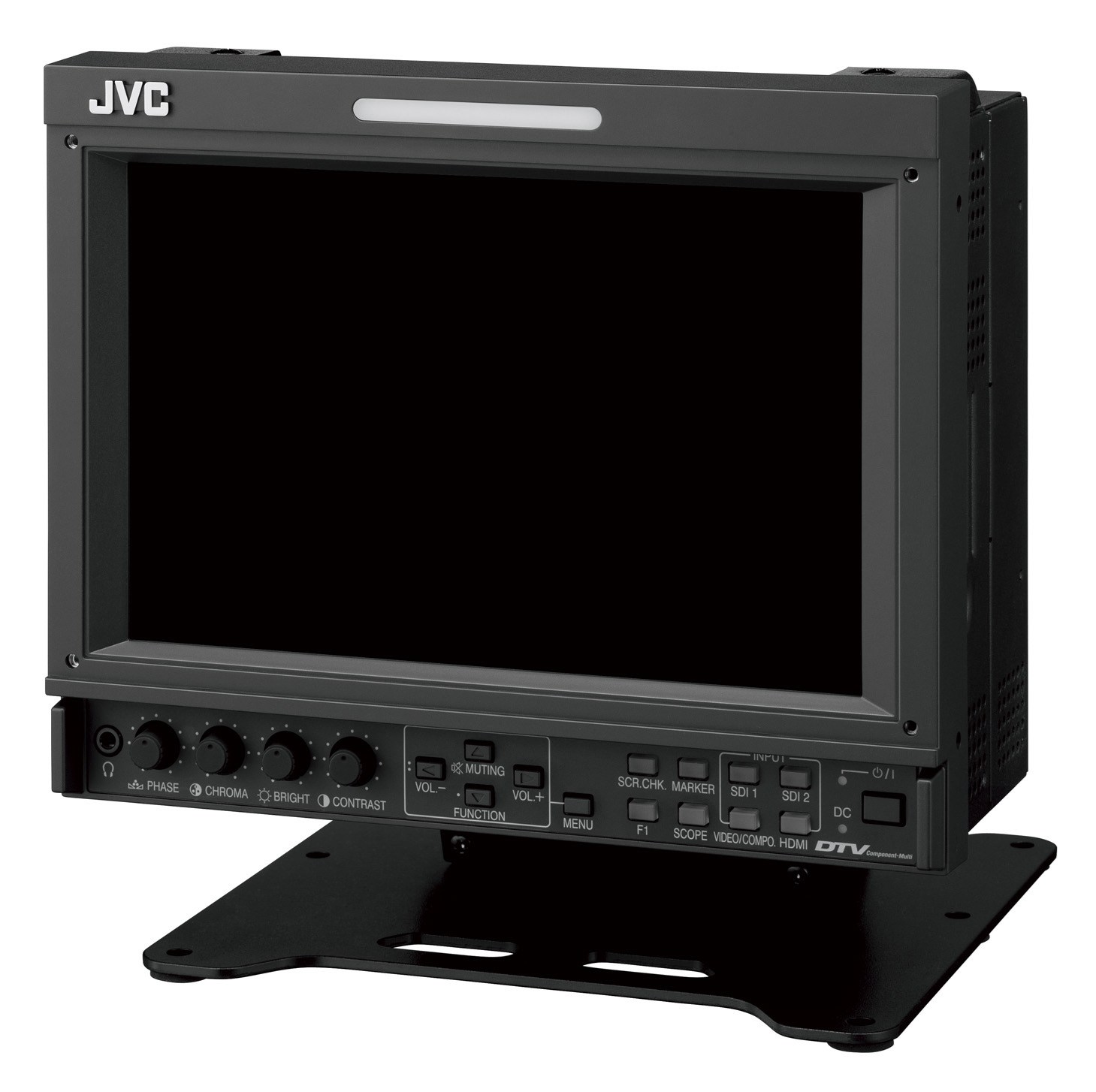

8.2" Multi-format LCD Monitor


Suggested retail price
  • HD SDI in x2 /out x1 (1.5G)
  • AC/DC operation
  • Tally lamp with separate/alternate mode
8.2" Multi-format LCD Monitor
Display Device
Type Multi-format LCD Monitor
Screen Size 8.2"
Aspect Ratio 16:10
Display Pixels 1280 x 800 (WXGA)
Response Time 24 msec
Display Colour 16.7 million
Surface Treatment Glare
Viewing Angle Horizontal 160°
Vertical 160°
Brightness 360 cd/m2
Contrast Ratio 800:1
Drive System ADS
Backlighting White LED
Audio Speaker Internal speaker 1.0W (mono)
Power Requirements AC 120/220-240V, 50/60Hz; DC 12V-17V
Rated Current 0.5A (AC 120V), 0.25A (AC 220V-240V), 1.3A(DC 12V-17V)
VESA Standard 100mm and 100mm (M4 x 4mm)
Dimensions With stand (WxHxD) 217 x 218 x 185 mm
Without stand (WxHxD) 217 x 176 x 116 mm
Weight With stand 3.2 kg
Without stand 2.3 kg
Accessories AC Power Cord, Power cord holder, Protect filter
Input/Output Terminals
Video IN/OUT Composite Composite (CVBS) IN: BNC x 1 Composite (CVBS) OUT: BNC x 1 with loop through
HDMI Input HDMI connector x 1
Analog Component RGB Input Component IN: BNC x 3 (Y/Pb/Pr)
HD/SD SDI Input BNC x 2
HD/SD SDI Output (Switched Out) BNC x 1 (Switched and rec-locked), (Embedded audio 16CH)
AUDIO Input RCA x 1 (mono)
AUDIO Output RCA × 2 (Monitor out)
Headphone Out Mini jack x 1 (Front)
External Control MAKE/TRIGGER RJ-45 x 1 (8-pin)
RS-232C D-sub (9-pin) x 1

Related Downloads

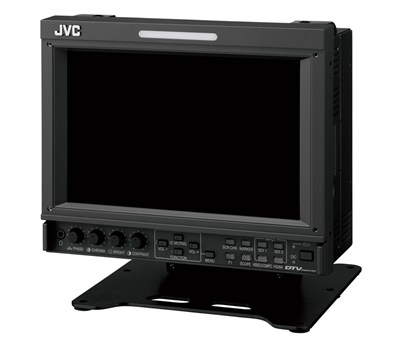

Product shot
