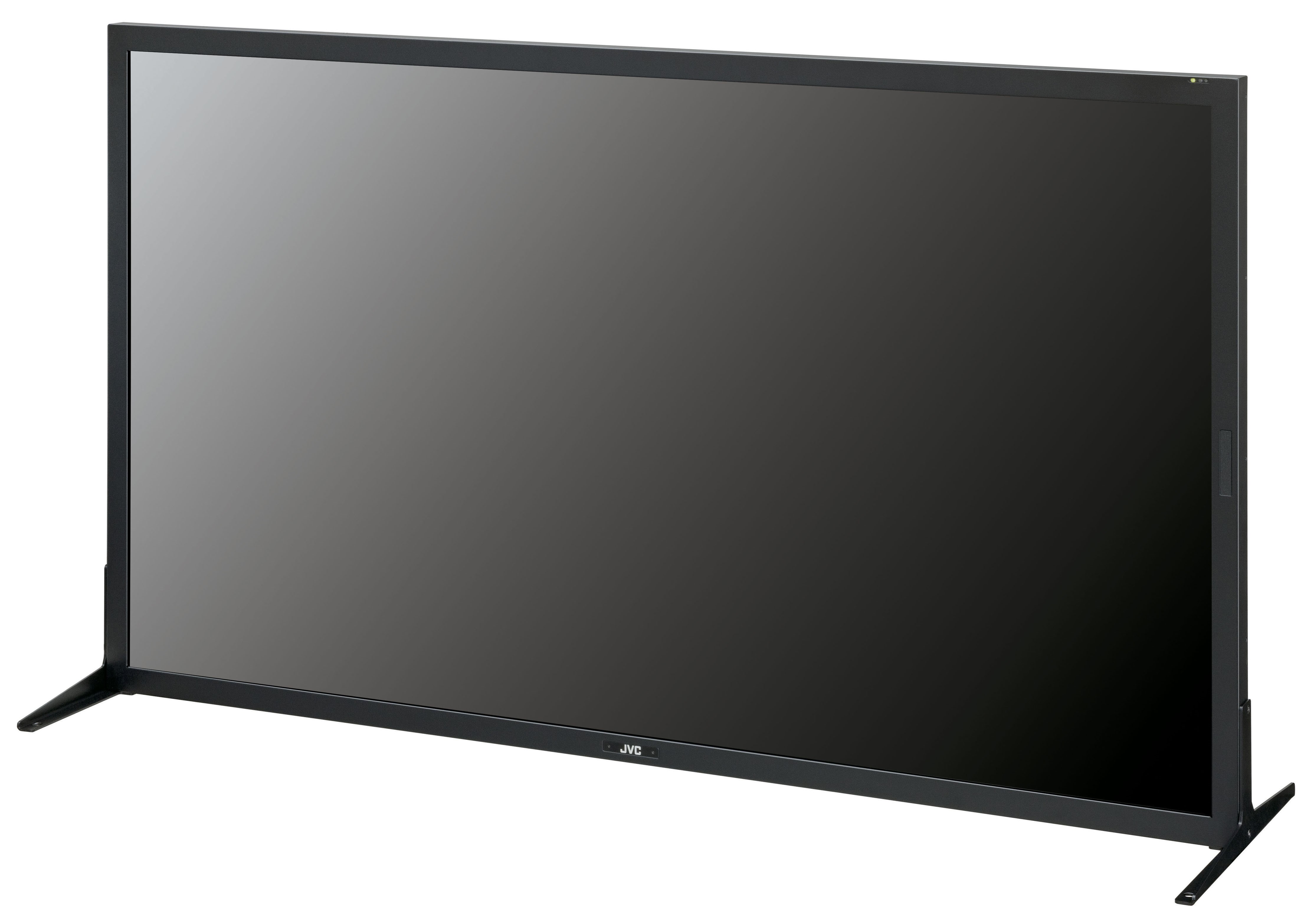

55" Full HD 16:9 LCD Monitor
GM-552
Suggested retail price
$45,000.00
$45,000.00
- Full HD 1920x1080 pixel display (non glare)
- LED back lighting with MTBF of > 50,000 hours
- Multi view function (video wall zoom) 2x1/2x2/3x3/4x4/5x5
| 55" Full HD 16:9 LCD Monitor GM-552 |
||
|---|---|---|
| Display Device | ||
| Type | LCD monitor | |
| Screen Size | 54.6" | |
| LCD Panel | Active matrix TFT | |
| Effective Screen Size (WxHxDiagonal) | 1209.6 x 680.4 mm | |
| Aspect Ratio | 16:9 | |
| Display Pixels | 1920 x 1080 | |
| Pixel Pitch (WxH) | 0.63 x 0.21 mm | |
| Response Time | 6.5 msec | |
| Display Colour | 1073.7 million | |
| Viewing Angle | Horizontal | 178° |
| Vertical | 178° | |
| Brightness | 450 cd/m2 | |
| Contrast Ratio | 4000:1 | |
| Backlighting | LED | |
| General | ||
| Audio Speaker | Internal speaker 1.5 W + 1.5 W | |
| Power Requirements | AC 100V-240 V, 50-60Hz, DC+12V output Max. 350 mA | |
| Rated Current | 1.8A | |
| Dimensions | With stand (WxHxD) | 1272.6 x 745.5 x 360 mm |
| Weight | With stand | 32.3 kg |
| Without stand | 31.4 kg | |
| Accessories | Remote control (RM-C3700) x 1, Batteries (AAA) x 2, Power cord 1.8 m x 2 (Europe model), 1.8 m x 1 (US model), Power cord clamp x 1, Stand unit x 2 (1 pair) | |
| Input/Output Terminals | ||
| Video IN/OUT Composite | VIDEO IN: BNC x 1; VIDEO OUT: BNC x 1 (Passive loop throught); S-Video Input: Mini DIN 4-pin x 1 | |
| HDMI Input | Type A (Screw hole / Gefen) | |
| Analog Component RGB Input | IN: D-Sub 15-pin x 1; OUT: D-Sub 15-pin x 1 | |
| DVI-D | INPUT: DVI-D (single link) × 1 | |
| AUDIO Input | CVBS/S-Video: RCA x 2 (L/R); HDMI, DVI-D, VGA: Stereo mini jack x 1 | |
| AUDIO Output | RCA × 2 (L/R), Monitor out | |
| External Control | RS-232C | IN: D-sub 9-pin x 1; OUT: D-sub 9-pin x 1 |
