HD/SD Memory Card Camcorder


Suggested retail price
  • 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
  • Wide media format compatibility: .MOV (Final Cut Pro) / .MP4 (XDCAM EX™) / AVCHD
  • Multiple encoding formats: HD MPEG2 (35/25/19Mbps) / AVCHD 1920x1080 60i / SD H.264 / 1080/60p recording capability
HD/SD Memory Card Camcorder
General Power requirement DC 12V (AC adaptor), DC 7.2V (Battery)
Power consumption Approx. 10W (with VF in single REC mode and default setting)
Dimensions (WxHxD) 178 x 198 x 416 mm
Weight Approx. 2.4kg (including battery)
Operating temperature 0°C to 40°C (32°F to 104°F)
Storage temperature -20°C to 50°C (14°F to 122°F)
Operating humidity 30% to 80% RH
Storage humidity Under 85%
Camera section Image sensor 1/3" 2.2M pixels progressive scan 3CMOS
Synchronizing System Internal synchronization
Stabilizer Optical image stabilizer
Shutter speed 1/4 to 1/10000
Lens Fujinon F1.6-3.0, 23x, f=4.1-94.3mm (35mm conversion: 29 to 667mm)
Filter diameter 72mm
Gain -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24 dB, Lolux, ALC
ND filter 1/4, 1/16, 1/64
LCD display 3.5" 920K pixels, 16:9
Viewfinder 0.45" 1.22M pixel, 16:9
Video Recording Recording media 2x SDHC/SDXC memory card Class 4/6/10 (Class 4 for AVCHD and H.264 only)
Video codec MPEG2 Long GOP(HD), MPEG-4/AVC H.264 (HD/SD)
File format MOV(HD/SD:H.264), MP4(XDCAM EX), MTS(AVCHD)
AVCHD NTSC setting: HQ mode:1920 x 1080/59.94i, SP mode:1920 x1080/59.94i PAL setting: HQ mode:1920 x 1080/50i, SP mode:1920 x1080/50i
SD (MPEG-4/AVC H.264) NTSC setting: 720 x 480/59.94i (GY-HM620E only) PAL setting: 720 x 576/50i (GY-HM600E only)
Audio Recording LPCM 2ch, 48kHz/16-bit (MPEG-2 Long GOP/MPEG-4/AVC H.264), Dolby Digital 2ch, 48kHz/16-bit, 256kbps (AVCHD)
Interface Video output AV output: φ3.5mm mini jack x1, SDI output: BNC x1, HDMI output x1
Audio inputs XLR x2 (MIC, +48V/LINE), φ3.5mm mini jack x1
Audio outputs AV output
USB Mini-USB2.0, Type-B
Headphone φ3.5mm mini jack x1
Time code input/output RCA x 1
Remote φ2.5mm mini jack x1
Accessories Battery (SSL-JVC50) x1, AC Adapter x1, AV cable x1

Related Downloads

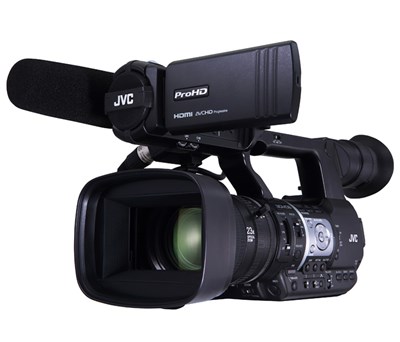

Product shot
