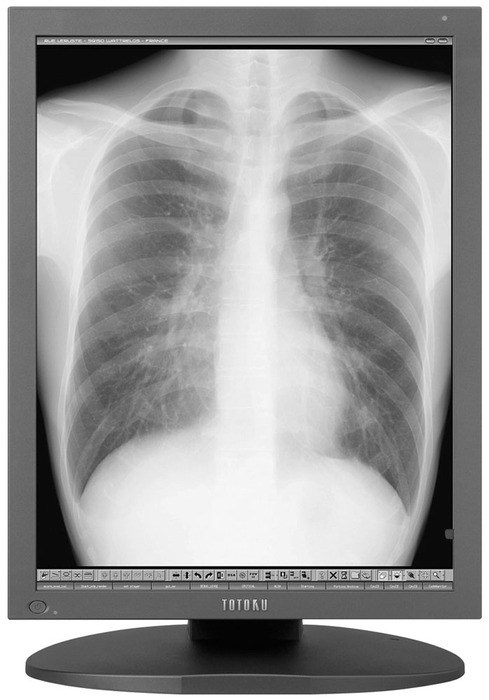

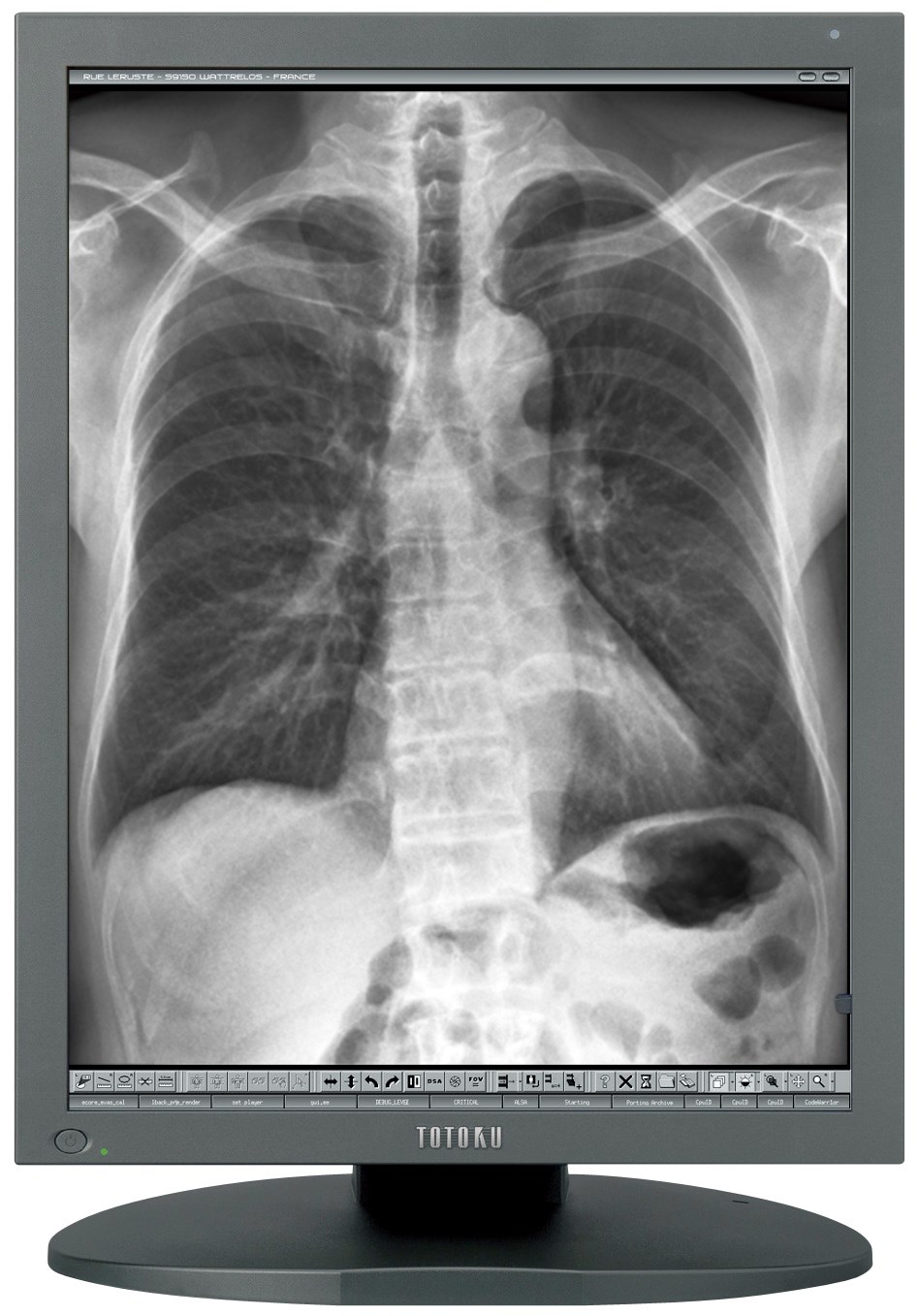

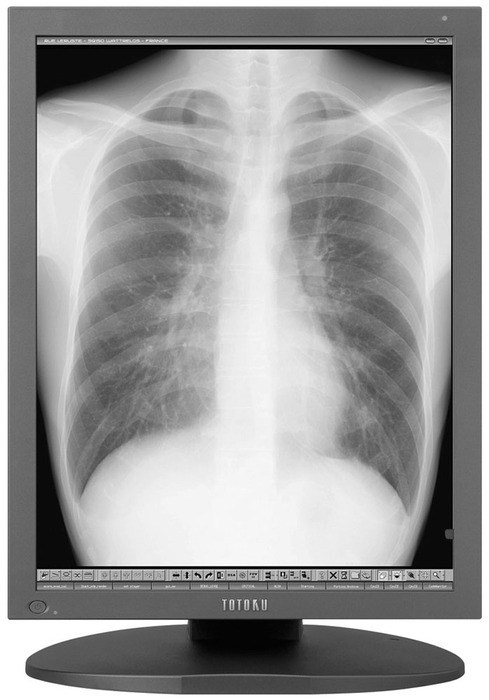

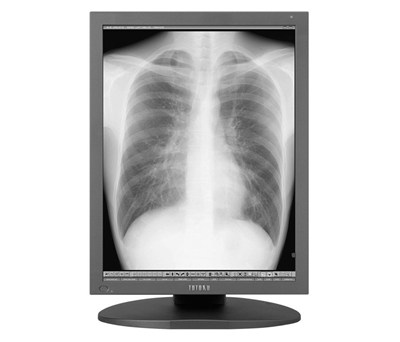

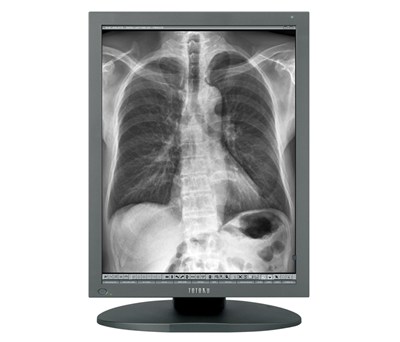

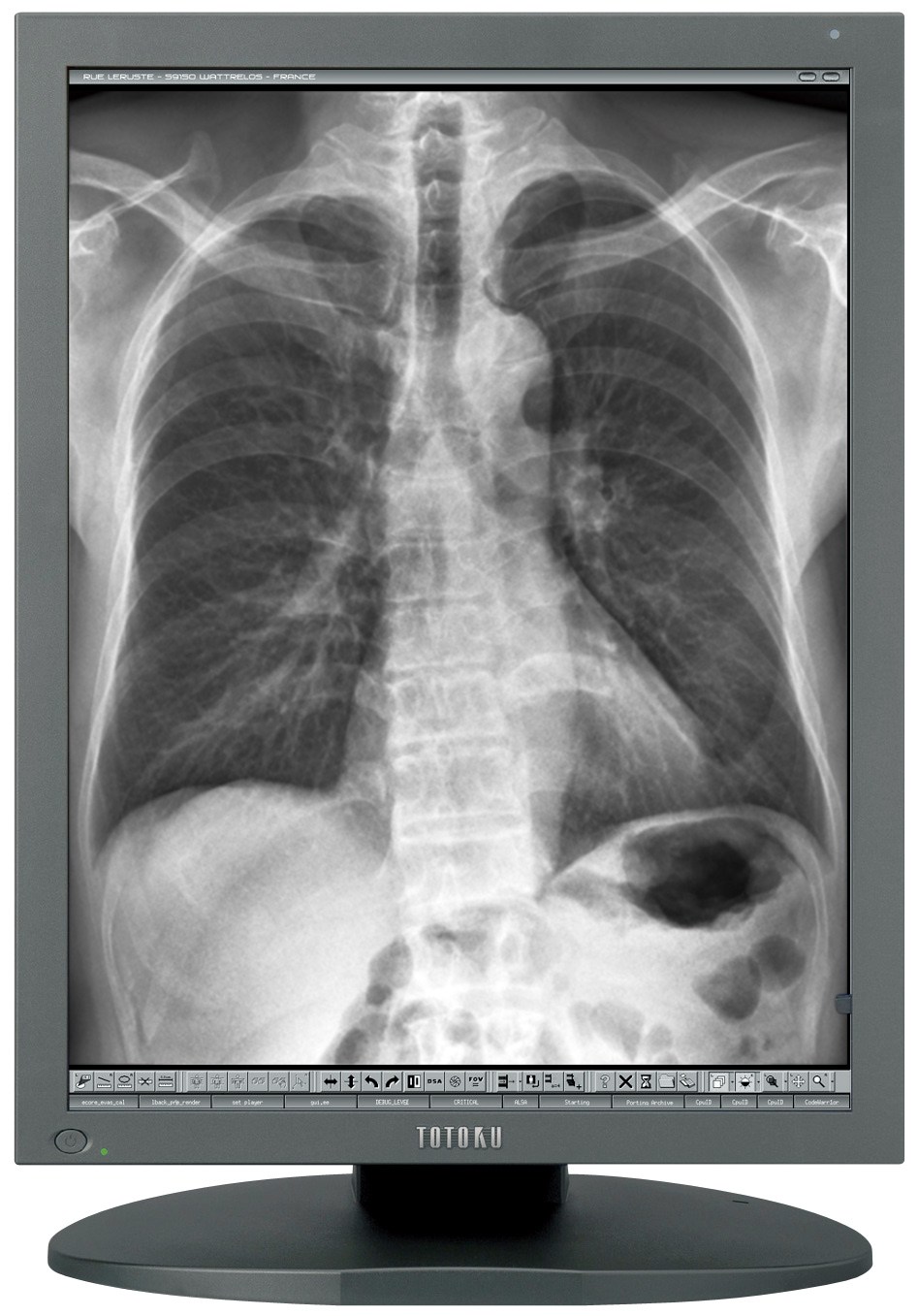

3 Megapixel 21.3" Monochrome Display


Suggested retail price
  • 3 Megapixel 21.3" TFT Monochrome active matrix IPS technology
  • 16 Bit Lut
  • Luminance stabilizing system λ-Sentinel
  • Independent Sub Pixel Drive technology
  • Remote grayscale check and remote calibration functions
  • 10-bit grayscale with DisplayPort connection
3 Megapixel 21.3" Monochrome Display
Technology 21.3" TFT monochrome active matrix IPS technology
Display Area 433.152mm x 324.864mm
Pixel Pitch 0.2115mm x 0.2115mm
Contrast Ratio 1400:1 (typ)
Maximum Luminance 1700 cd/m2 (typ)
Viewing Angle 170° Vertical and Horizontal
Native Resolution 1536 x 2048, Independent Sub pixel Drive technology ON: 1536 x 6144 (sub-pixel)
Grayscale 256 shades of grayscale are simultaneously displayed from a palette of 12,241 grayscale steps *1021 or 10-bit shades of grayscale with Display Port and 10-bit viewer *1276 shades of grayscale with customised medISD viewer
Input Signal DVI-D (DVI 1.0 compliant), Display Port (Display Port 1.1a compliant)
Plug and Play DDC2B compliant
Input Power Supply 100V-240V, 50/60Hz
Maximum Power Consumption 60W (typ)
Calibration Control Luminance, Gamma, Capability of saving 3 sets of LUT settings (An optional calibration kit is required)
OSD Information Display Model name, Serial No., Total operating time, Calibration settings (Operating time from last calibration, Luminance, Gamma), Current luminance
USB Hub USB Rev. 2.0 compliant, Self-powered USB upstream connector (x1), USB downstream connector (x2)
Others Features Luminance uniformity correction, Hardware pivot, LED indicator, Configurations switching function, Independent Sub pixel Drive technology, Self DICOM check function
Dimensions (WxHxD) Landscape 474mm x 468.4/529.9mm x 220mm
Portrait 367mm x 521.9/583.4mm x 220mm
Net Weight approx. 12kg
Mount Vesa mounting 100mm x 100mm
Accessories Power cord, DVI cable, DisplayPort cable, USB cable, Users manual
