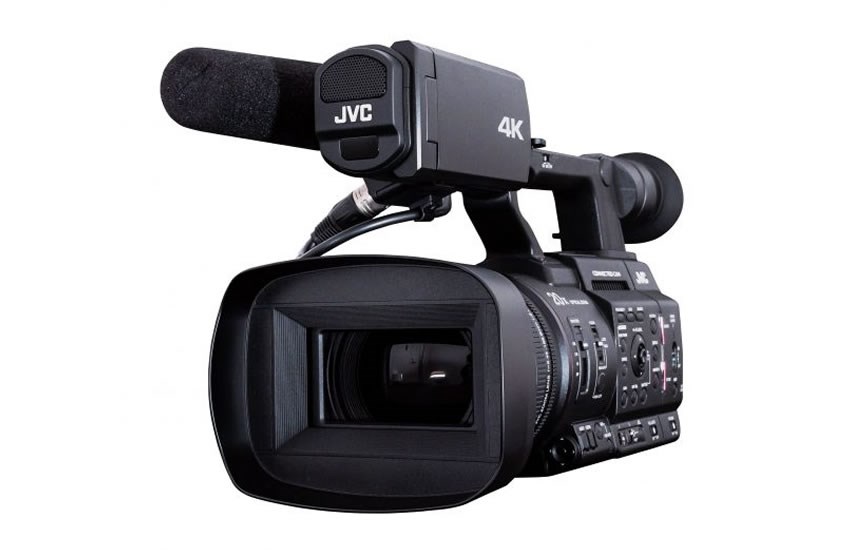

4K Memory Card Camera Recorder
GY-HC500E
Suggested retail price
$30,000.00
$30,000.00
- 1" CMOS image sensor with 20X Optical Zoom Lens
- 4K UHD 60p/50p Apple ProRes 422 10-bit recording (requires SSD media and optional KA-MC100G media adaptor)
- HDR (Hybrid Log Gamma / J-Log 1 Gamma)
| 4K Memory Card Camera Recorder GY-HC500E |
||
|---|---|---|
| General | ||
| Power requirement | DC12V (AC adapter), DC7.2V (battery) | |
| Power consumption | Approx. 24W (Default setting) | |
| Dimensions (WxHxD) | 188mm x 229mm x 437mm (with lens hood) | |
| Weight | 3.3kg (with lens hood and battery) | |
| Operating temperature | 0°C to 40°C | |
| Storage temperature | -20°C to 50°C | |
| Operating humidity | 30% to 80% | |
| Storage humidity | Under 85% | |
| Camera section | ||
| Image sensor | 1" (effective) CMOS, effective number of pixels: approx 9.35 million | |
| Synchronizing System | Internal synchronization | |
| Stabilizer | Optical image stabilizer | |
| Shutter speed | 1/6 (48Hz), 1/7.5 (60Hz) to 10000 | |
| Lens | F2.8 (wide) to F4.5 (tele), f=9.43mm to 188.6mm (f=28mm to 560mm (35mm equivalent)) | |
| Filter diameter | 82mm | |
| Gain | -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24 Lolux (30, 36) dB, AGC | |
| ND filter | OFF, 1/4, 1/16, 1/64 | |
| LCD display | 3.97" LCD approx. 1.15M pixels WVGA (800 x 480), 800 x 450 at 16:9 | |
| Viewfinder | 0.4" LCOS approx 3.68M pixels Quad VGA (1280 x 960), 1280 x 720 at 16:9 | |
| Video Recording | ||
| Recording media | SDHC/SDXC memory card x 2 | 4K (150Mbps): UHS-1 U3, 4K (70Mbps)/HD (70Mbps/50Mbps): Class 10 |
| SSD (Solid State Drive) Type M.2 SATA | With KA-MC100G (optional) | |
| Video codec | Apple ProRes 422, MPEG-4 AVC/H.264 | |
| File format | QuickTime, MP4 | |
| Audio Recording | LPCM 2ch, 48kHz/24-bit (Apple ProRes 422), 48kHz/16-bit (QuickTime), μ-Law 2ch (Web), AAC 2ch (Exchange/MP4) | |
| Live Video Streaming | ||
| Protocol | RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP | |
| Resolution and Bitrate | HD | 1920 x 1080 (59.94p/50p) 24/20/16/12/8Mbps, 1920 x 1080 (59.94i/50i/29.97p/25p) 20/16/12/8/5/3Mbps, 1280 x 720 (59.94p/50p) 20/16/12/8/5/3Mbps, 1280 x 720 (29.97p/25p) 8/5/3/1.5Mbps |
| SD | 720 x 480 (59.94i) (U model), 720x576 (50i) (E/EC model) 8/5/3/1.5/0.8/0.3Mbps | |
| Low | 640 x 360 (59.94p/50p) 3/1.5Mbps, 640 x 360 (29.97p/25p) 3/1.5/0.8/0.3Mbps | |
| Audio | AAC 2ch 128Kbps (1.5Mbps over), 64Kbps (0.8Mbps under) | |
| Interface | ||
| Video output | 3G-SDI output (BNC x 1) (up to 1920 x 1080 60p 4:2:2 10-bit) | |
| Audio inputs | XLR x 2 (MIC, +48V/LINE), o3.5mm mini jack x 1 | |
| Audio outputs | HDMI output x 1 (up to 3840 x 2160 60p 4:2:2 10-bit) | |
| USB | HOST x 1 (network connection, USB 2.0) | |
| Headphone | o3.5mm mini jack x 1 | |
| Remote | ø2.5mm mini jack x 1 | |
| Extended slot | KA-MC100G and for future expansion purpose | |
| Ethernet | RJ-45 x 1 | |
| Accessories | Battery (BN-VC296G) x 1, AC adapter, power cable, lens hood | |
