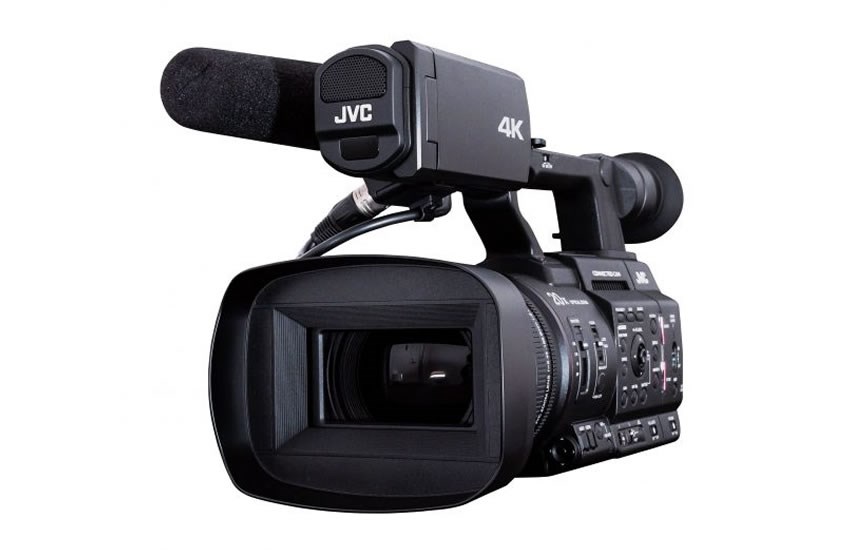

4K手提攝錄機
GY-HC500E
建議零售價
$30,000.00
$30,000.00
- 1英寸CMOS圖像傳感器帶20倍光學變焦鏡頭
- 4K UHD 60p / 50p Apple ProRes 422 10位記錄（需要SSD媒體和可選的KA-MC100G媒體適配器）
- 高動態範圍 (Hybrid Log Gamma / J-Log 1 Gamma)
| 4K手提攝錄機 GY-HC500E |
||
|---|---|---|
| 概括 | ||
| 電源 | DC12V (AC adapter), DC7.2V (battery) | |
| 功耗 | Approx. 24W (Default setting) | |
| 尺寸 (寬x高x深) | 188mm x 229mm x 437mm (with lens hood) | |
| 重量 | 3.3kg (with lens hood and battery) | |
| 操作溫度 | 0°C to 40°C | |
| 存儲溫度 | -20°C to 50°C | |
| 操作濕度 | 30% to 80% | |
| 存儲濕度 | Under 85% | |
| 攝像部分 | ||
| 圖像傳感器 | 1" (effective) CMOS, effective number of pixels: approx 9.35 million | |
| 同步系統 | Internal synchronization | |
| 穩定器 | Optical image stabilizer | |
| 快門速度 | 1/6 (48Hz), 1/7.5 (60Hz) to 10000 | |
| 鏡頭 | F2.8 (wide) to F4.5 (tele), f=9.43mm to 188.6mm (f=28mm to 560mm (35mm equivalent)) | |
| 過濾器直徑 | 82mm | |
| 增益 | -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24 Lolux (30, 36) dB, AGC | |
| ND濾光鏡 | OFF, 1/4, 1/16, 1/64 | |
| 液晶顯示屏 | 3.97" LCD approx. 1.15M pixels WVGA (800 x 480), 800 x 450 at 16:9 | |
| 尋像器 | 0.4" LCOS approx 3.68M pixels Quad VGA (1280 x 960), 1280 x 720 at 16:9 | |
| 視頻錄製 | ||
| 記錄媒體 | SDHC/SDXC 記憶咭 x 2 | 4K (150Mbps): UHS-1 U3, 4K (70Mbps)/HD (70Mbps/50Mbps): Class 10; HD (35Mbps): Class 6, SD: Class 4, Web: Class 4, High-Speed: UHS-1 U3; Exchange (U model)/MP4 (E model): Class 4 |
| SSD (Solid State Drive) Type M.2 SATA | With KA-MC100G (optional) | |
| 視頻編碼解碼器 | Apple ProRes 422, MPEG-4 AVC/H.264 | |
| 文件格式 | QuickTime, MP4 | |
| 音頻錄製 | LPCM 2ch, 48kHz/24-bit (Apple ProRes 422), 48kHz/16-bit (QuickTime), μ-Law 2ch (Web), AAC 2ch (Exchange/MP4) | |
| 流媒體視頻直播 | ||
| 協議 | RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP | |
| 解析度及碼率 | HD | 1920 x 1080 (59.94p/50p) 24/20/16/12/8Mbps, 1920 x 1080 (59.94i/50i/29.97p/25p) 20/16/12/8/5/3Mbps, 1280 x 720 (59.94p/50p) 20/16/12/8/5/3Mbps, 1280 x 720 (29.97p/25p) 8/5/3/1.5Mbps |
| SD | 720 x 480 (59.94i) (U model), 720x576 (50i) (E/EC model) 8/5/3/1.5/0.8/0.3Mbps | |
| Low | 640 x 360 (59.94p/50p) 3/1.5Mbps, 640 x 360 (29.97p/25p) 3/1.5/0.8/0.3Mbps | |
| 音頻 | AAC 2ch 128Kbps (1.5Mbps over), 64Kbps (0.8Mbps under) | |
| 介面 | ||
| 影像輸出 | 3G-SDI output (BNC x 1) (up to 1920 x 1080 60p 4:2:2 10-bit) | |
| 音頻輸入 | XLR x 2 (MIC, +48V/LINE), o3.5mm mini jack x 1 | |
| 音頻輸出 | HDMI output x 1 (up to 3840 x 2160 60p 4:2:2 10-bit) | |
| USB | HOST x 1 (network connection, USB 2.0) | |
| 耳機 | o3.5mm mini jack x 1 | |
| 遠程 | ø2.5mm mini jack x 1 | |
| 延伸插口 | KA-MC100G and for future expansion purpose | |
| 以太綱 | RJ-45 x 1 | |
| 附件 | Battery (BN-VC296G) x 1, AC adapter, power cable, lens hood | |
