4K Super 35mm Camcorder


Suggested retail price
  • Newly developed 4K Super 35 CMOS image sensor
  • Adapters available for PL and EF mount lenses
  • 4K Ultra HD recording (150 Mbps) to SDHC/SDXC (UHS-I Speed class 3) card
4K Super 35 Camcorder
General Power requirement DC 12V (AC adaptor), DC 7.4V (Battery)
Power consumption Approx. 9.8W (4K), 9.1W (HD) (with VF in REC mode, default setting)
Dimensions (WxHxD) 135 x 191 x 359 mm
Weight 3.75 lbs. (including battery) / (1.7 kg)
Operating temperature 0°C to 40°C
Storage temperature -20°C to 50°C
Operating humidity 30% to 80%
Storage humidity Under 85%
Camera section Image sensor Super 35, 13.5 M pixels progressive scan CMOS
Synchronizing System Internal synchronization
Shutter speed 1/6 to 1/10000
Lens mount Micro Four Thirds system mount
Gain 0, 3, 6, 9, 12, 15, 18, 21, 24 dB, Lolux(30,36 dB), AGC
ND filter none, 1/4, 1/16, 1/64
LCD display 3.5" 920K pixels, 16:9
Viewfinder 0.24" 1.56M pixel, 16:9
Video Recording Recording media 2x SDHC/SDXC memory card (4K:UHS-1 U3, HD:50Mbps Class10, HD:35Mbps Class6, AVCHD/SD Class4)
Video codec MPEG-4 AVC/H.264 (4K/HD/SD/Proxy), AVCHD(HD/SD)
File format MOV(H.264), MTS(AVCHD)
4K (H.264) NTSC setting: 3840 x 2160/29.97p, 23.98p (150Mbps) PAL setting: 3840 x 2160/25p (150Mbps)
HD (H.264) NTSC setting: YUV422 mode: 1920x1080/59.94p, 59.94i, 29.97p, 23.98p(50Mbps); XHQ mode: 1920x1080/59.94p, 59.94i, 29.97p, 23.98p(50Mbps), 1920x1080/59.94i, 29.97p, 23.98p(35Mbps), 1280x720/59.94p(35Mbps) PAL setting: YUV422 mode: 1920x1080/50p,50i,25p(50Mbps); XHQ mode: 1920x1080/50p, 50i, 25p(50Mbps), 1920x1080/50i, 25p(35Mbps), 1280x720/50p(35Mbps)
AVCHD NTSC setting: Progressive mode(Max 28Mbps): 1920x1080/59.94p HQ mode(24Mbps): 1920x1080/59.94i, SP mode(17Mbps): 1920x1080/59.94i; LP mode(9Mbps): 1440x1080/59.94i(Web mode), EP mode(5Mbps): 1440x1080/59.94i(Web mode) PAL setting: Progressive mode(Max 28Mbps): 1920x1080/50p HQ mode(24Mbps): 1920x1080/50i, SP mode(17Mbps): 1920x1080/50i LP mode(9Mbps): 1440x1080/50i(Web mode), EP mode(5Mbps): 1440x1080/50i(Web mode)
SD (MOV/AVCHD) NTSC setting: 720 x 480/59.94i(8Mbps)
Proxy (H.264) NTSC setting: HQ mode(3Mbps): 960 x 540/29.97p, 23.98p, LP mode(1.2Mbps): 480 x 270/29.97p, 23.98p PAL setting: HQ mode(3Mbps): 960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p
Audio Recording LPCM 2ch, 48kHz/16-bit(4k/HD/SD MOV), AC3 2ch(AVCHD), μlaw 2ch(Proxy)
Live Video Streaming Protocol RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, RTSP/RTP, ZIXI
Bitrate 0.2 - 12 Mbps
Resolution 1920 x 1080, 1280 x 720, 720 x 480, 480 x 270
Interface Video output AV output: φ3.5mm mini jack x1, SDI output: (BNC x1), HDMI output x1
Audio inputs XLR x2 (MIC, +48V/LINE), φ3.5mm mini jack x1
Audio outputs AV output (φ3.5mm mini jack x1)
USB HOST x1 (Network Connection), DEVICEx1 (Mass storage) Supported devices: 4G LTE modems, Wi-Fi and LAN adapters
Headphone φ3.5mm mini jack x1
Remote φ2.5mm mini jack x1
Accessories Handle unit, Battery (SSL-JVC50) x1, AC Adapter x1

Related Downloads

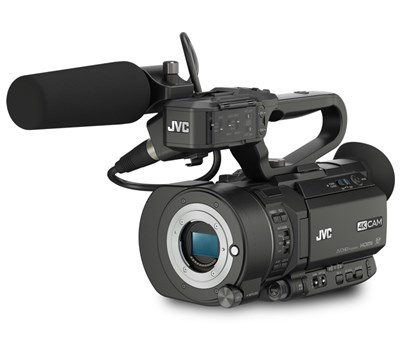

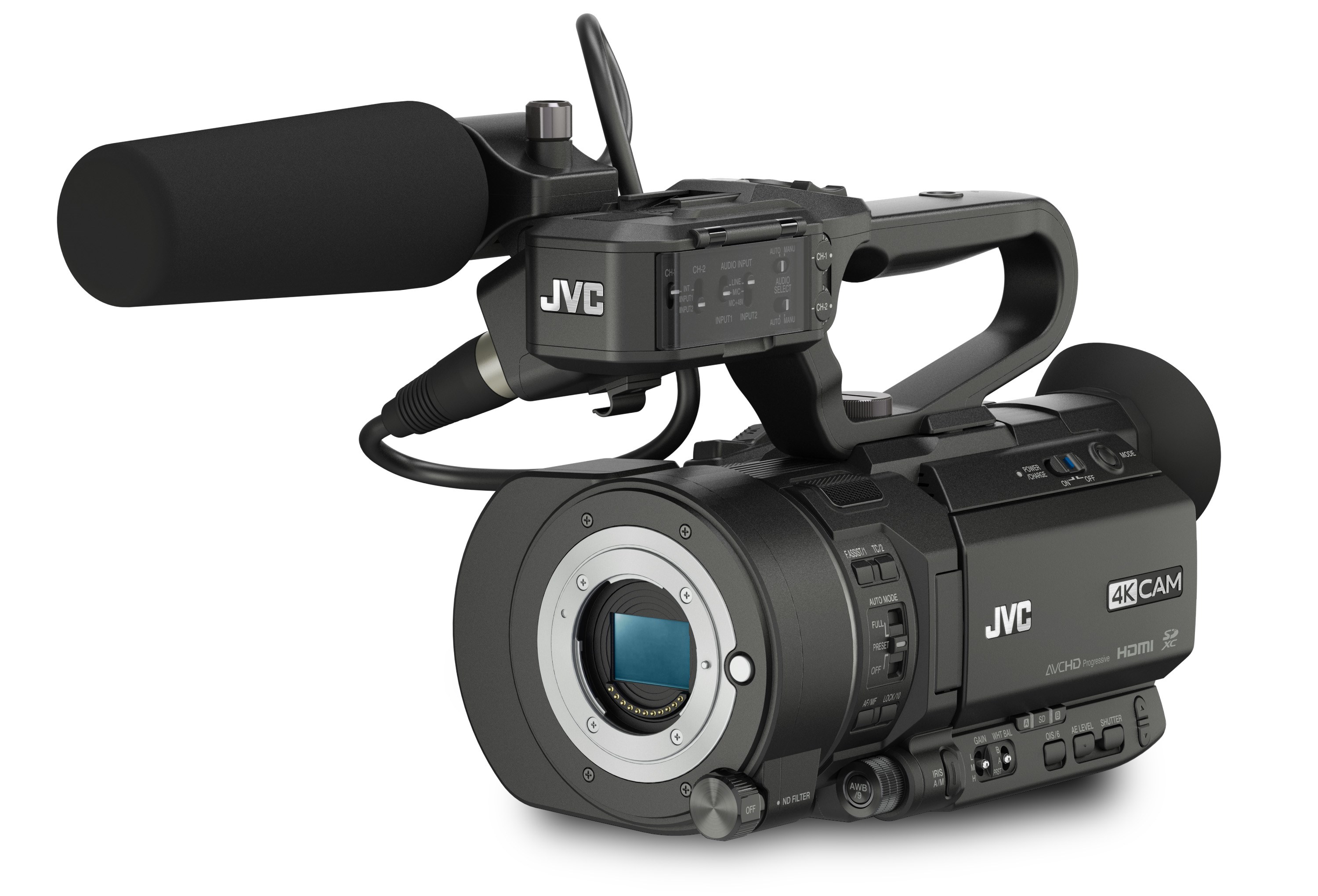

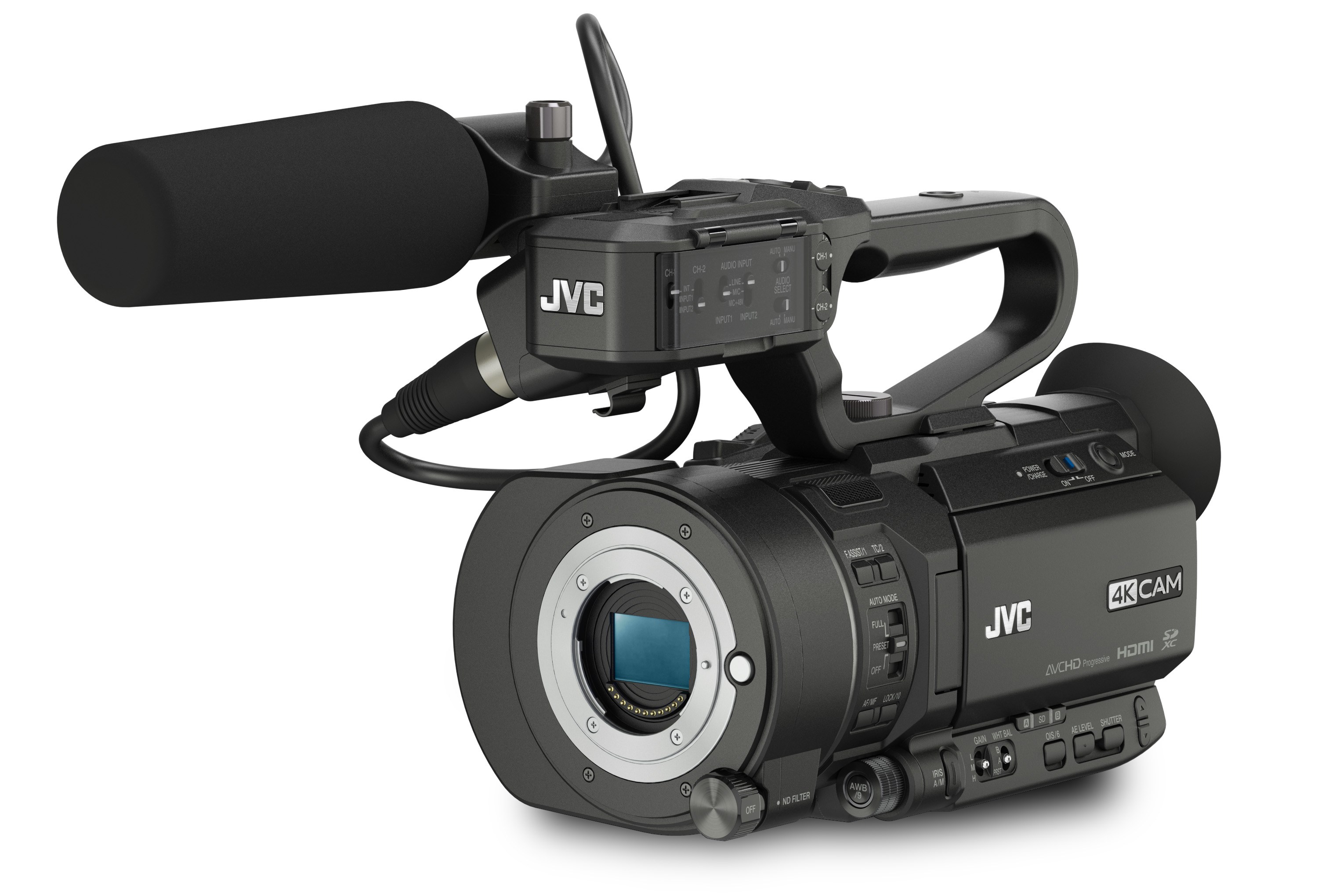

Product shot
